Schartec Sliding Gate Opener Jet 500 complete kit
The Jet 500 is the bestselling sliding gate opener from Schartec. With a pulling force of 5000 N, it easily moves sliding gates up to 5 m wide and 2 m high. The maximum gate weight is 500 kg. The two included remote controls are compact and fit easily into any pocket or car compartment. The light barrier and the flash light make the system more safe. 4m of toothed racks including mounting materials, makes the Jet 500 complete kit ready to install for gates up to 4m.
Innovative Technology
The soft-start and soft-stop function protects the gearbox and extends the lifespan of both gate and motor. The Schartec sliding gate control unit also features an adjustable auto-close function. A popular feature is the partial opening function, which allows the gate to be opened only partially when full access isn’t needed. For maximum safety, the integrated obstacle detection ensures that if the gate hits an object, the motor not only stops but also reverses. The included safety beam makes the Schartec Jet 500 even safer, providing additional protection against serious injury to adults, children, or pets.
Schartec Quality
Schartec sliding gate openers stand out for their durable construction. The Jet series uses solid steel base plates, while drive power is delivered via a 25 mm thick steel shaft combined with a steel gear (Module 4). The built-in LED display simplifies menu navigation and allows for a wide range of configuration options.
All Schartec products undergo thorough quality control with 100% final inspection.
IMPORTANT! Sliding gates operated with an electric opener must have a safety edge on the closing edge for safety reasons. Find the suitable safety buffer profile here!
Important Notes on Selection and Installation:
- Ensure compliance with DIN EN 13241 standards.
- Check the maximum gate infill (recommended: 30 to 50%) considering the wind loads in your area.
- Gates with full infill panels are not suitable for automated operation.
-
Installation dimensions on the gate post, especially the maximum installation depth between posts, are critical.
Compatible Remote Controls:
- SCHARTEC T11
- SCHARTEC T10
- SCHARTEC SR-2
- SCHARTEC SR-4
Compatible Keypads:
- Schartec Sky
- Schartec Titan
- SCHARTEC SKP-3 (wireless keypad)
Compatible Wireless Wall Switches:
- Schartec UPB-1
- Schartec UPB-2
Details:
- 4m toothed racks included
- flash light included
- Gear-friendly soft start and soft stop
- Programmable partial opening
- Automatic closing function
- Integrated obstacle detection
- Adjustable motor direction
- Adjustable motor speed
- Motor control with display for easy navigation
- Heavy-duty metal cast base plate
- Closed front pinion guard
- Supports pairing with up to 200 remotes
- Control unit with surge protection
- Manual emergency release with key
- Connection option for safety beam
- Connection option for push button or key switch
- Connection option for signal light
- 2-year manufacturer warranty (see warranty terms in the manual)

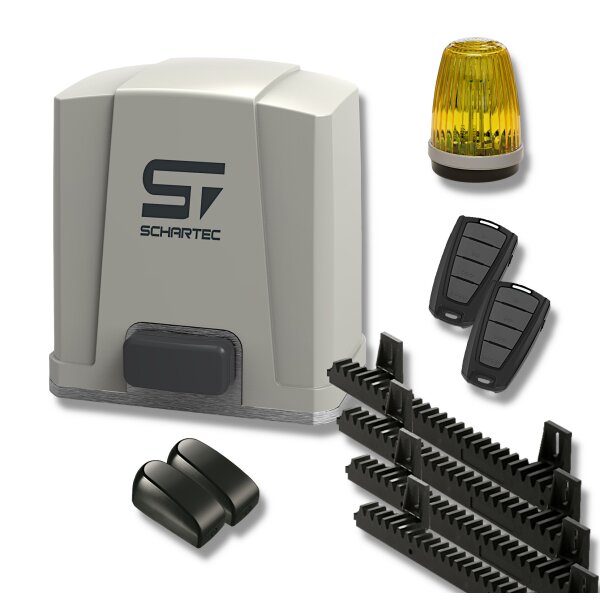

Scope of Delivery:
- Schartec Jet 500 Sliding Gate Opener
- integrated control board
- 2 pcs. remote controls T11
- 1 pcs. light barrier SPCM
- 1 pcs. flash light
- 4 pcs. toothed racks (4 x 1m)
- moutning materials
- manual instruction
Technical Details:
- Input voltage: 230 V
- Control voltage: 24 V DC
- Power: 144 W
- Peak force: 5500 N
- Tensile and compressive force: 5000 N
- Max. gate weight: 500 kg
- Max. gate width: 5 m
- Max. gate height: 2 m
- Operating temperature: -20°C to +50°C
- Current consumption: 6 A
- Protection class: IP 54
- Standby power: approx. 4 W
- Dimensions: 250 x 170 x 275 mm
IMPORTANT! Our sliding gate openers comply with the latest European safety rollback standards for obstacle detection. As a result, the control unit reacts very sensitively. Please ensure before purchasing that your gate mechanism is in good condition and properly maintained. The gate must run smoothly and evenly and be operable by hand without difficulty. Otherwise, the safety rollback function may be triggered, causing the gate to reverse during operation.
