Schartec Jet 600 Sliding Gate Operator – Quality Made in the EU

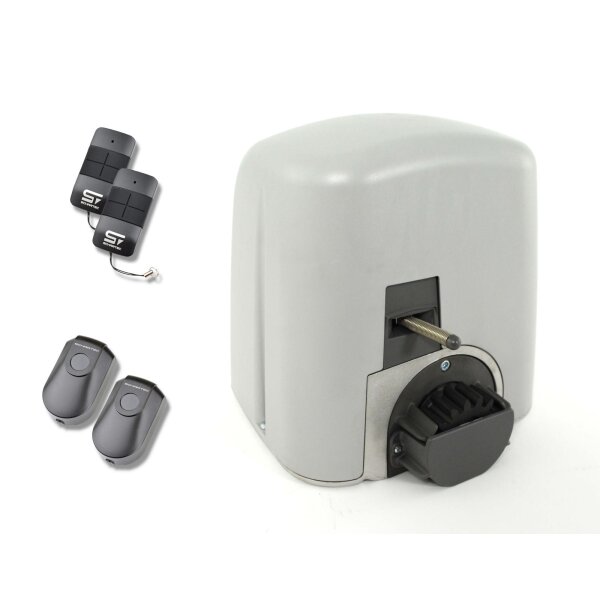

The Jet 600 is Schartec’s bestselling sliding gate operator. With a pulling force of 400 N, it can easily move sliding gates up to 6 m wide and 2 m high. The maximum gate weight is 600 kg. The two included remote controls are compact and therefore fit easily into any trouser pocket or storage compartment in your vehicle.
Innovative Technology
The soft-start and soft-stop function reduces strain on the gearbox and therefore helps to extend the service life of both the gate and the operator. An automatic closing function can also be configured via the control unit of Schartec sliding gate operators. Another important feature for many customers is the partial-opening function. This means the sliding gate does not always have to be opened fully. For maximum safety, the motor features an integrated force cut-off. If the gate encounters an obstacle, the operator not only stops but also reverses the gate. The included photocell makes the Schartec Jet 600 even safer and provides additional protection against serious injury to adults, children or animals.
Schartec Quality
Schartec sliding gate operators are particularly impressive thanks to their robust construction. For example, the Schartec Jet operators use solid steel base plates. Smooth operation is provided by a strong steel shaft combined with a steel pinion (Module 4). A wide range of adjustment options is also included, making the Jet 600 a highly versatile all-rounder.
All Schartec products undergo comprehensive quality assurance with 100% final inspection.
IMPORTANT! Sliding gates operated by an electric sliding gate operator must, for safety reasons, be fitted with a safety edge on the closing edge. You can find the suitable safety edge profile here!
Important information regarding selection and installation:
- Ensure compliance with the requirements of DIN EN 13241.
- Check the maximum gate leaf infill (recommended: 30 to 50%), taking into account the wind loads in your region.
- Gates with fully solid infill are not suitable for automated operation.
- The installation dimensions at the gate post, particularly the maximum installation depth of the gate between the posts, are crucial.
Compatible remote controls:
- SCHARTEC T11
- SCHARTEC T10
- SCHARTEC SR-2
- SCHARTEC SR-4
Compatible keypads:
- Schartec Sky
- Schartec Titan
- SCHARTEC SKP-3 (wireless keypad)
Compatible wireless wall switches:
- Schartec UPB-1
- Schartec UPB-2
Details:
- Quality Made in the EU
- Gearbox-protecting soft start and soft stop
- Programmable partial opening
- Automatic closing
- Integrated force cut-off
- Adjustable direction of rotation
- Adjustable motor speed
- Motor control unit with display for easy menu navigation
- Solid cast-metal base plate
- Front-closed pinion guard
- Stores up to 64 remote controls
- Control unit with surge protection
- Manual emergency release with key
- Connection for a photocell
- Connection for a push button or key switch
- Connection for a warning light
- 3-year manufacturer’s warranty (see warranty terms in the instructions)
CAUTION! Our sliding gate operators comply with the latest European standards regarding safety reversal when an obstacle is detected. As a result, the control system reacts very sensitively. Before purchasing, please check that your gate mechanism is in good working order and that the gate has been properly maintained. The gate should move smoothly and without jerking and should be easy to operate manually. Otherwise, the safety reversal function may be triggered, causing the gate to reverse during operation.
