SCHARTEC Sky Touch Keypad for Garage Doors and Gates Compatible
The Sky keypad from SCHARTEC features 1 channel and can therefore control one drive. It is universally applicable and works with all electric gate operators and doors with an electric opener, regardless of the manufacturer. You can easily use the code switch for your driveway gate, garage door, or front door. For this, you only need a 12-24 V DC power supply (only use power supplies with 12-24 V DC, AC is not possible), which most electric gate operators already provide. The keypad is wired, so there is no need to change batteries, as is the case with wireless keypads.
The SCHARTEC Universal Keypad is both high-quality and robust
The premium keypad impresses with its modern design, high-quality workmanship, and best materials. It is made from a solid aluminium-zinc housing, making it very well protected against weather or damage. Thanks to the reinforced glass keypad, wear on the number keys is prevented. The keypad is operated via touch function, simplifying the input of numerical codes. The keypad is also very easy to use in the rain. With an IP 68 protection class, the keypad is also suitable for outdoor use. The keypad lighting can be activated or deactivated as desired.

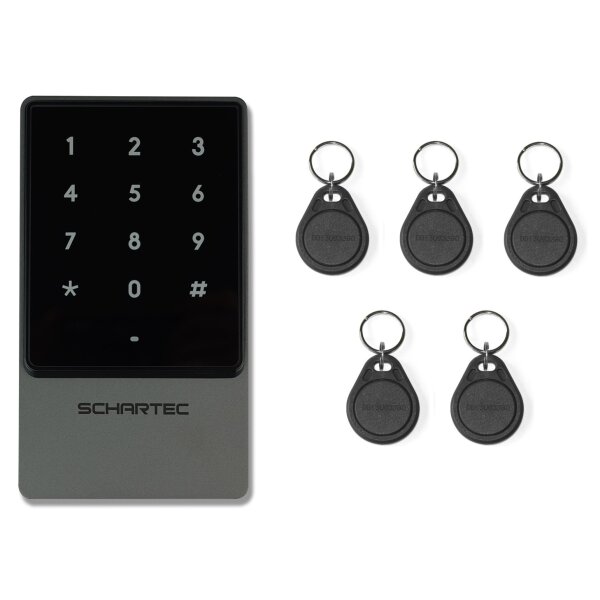

The SCHARTEC Sky keypad can also be operated with RFID transponder chips, which are available as accessories.
A premium keypad with many possibilities
The SCHARTEC Sky keypad can register up to 2000 users, who can then easily open the gate or door using a numerical code. Additionally, so-called transponders (available separately) can be programmed to open the garage door or door without entering the numerical code. An administrator password also protects against adding or deleting codes or transponders by unauthorised persons. When using the SCHARTEC Sky on a door with an electric opener, the opening time (hold time) can be set in seconds.
Compatible with:
- Schartec Prime
- Schartec Move
- Schartec Porte
- Schartec Jet
- Third-party products with keypad connection options
IMPORTANT! when used with gate operators, the relay switching time of the keypad must be set to 500 ms - 1 sec, depending on the drive (for Hörmann drives, for example, 1 sec and for Schartec drives 500 ms). The keypad is factory set to 5 sec (for front doors).
