Compatible with Marantec accessories with 868 MHz Multi Bit
Technical Data
C51
Nominal voltage: 230 / 260 V
Nominal frequency: 50 / 60 Hz
Current consumption: 1.1 A
Power consumption in operation: 0.25 kW
Power consumption in standby: approx. 4 W
Duty cycle: 2 min
Control voltage: 24 V DC
Protection class motor unit: IP 20
Pull and push force: 550 N
Maximum running speed: 160 mm/s
Opening time, specific to torque: 14 s
Weight: 5.2 kg
Sound pressure level: <70 dB(A)
Temperature range: -20°C to +60°C
Maximum gate width:
a) Swing gates: 3500 mm
b) Single-skin sectional doors: 5000 mm
c) Double-skin sectional doors: 3000 mm
d) Tilt and canopy doors (width & height): 3500 mm / 2250 mm
Maximum gate weight: 80 kg
Maximum gate cycles: 16 per day

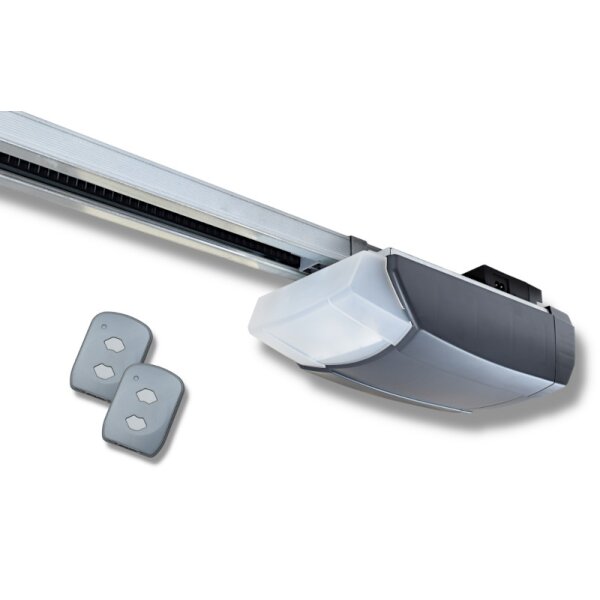

Delivery Scope
Motor unit with integrated control
Drive rail SZ 11-SL, 3-part 3,080 mm
Digital 168 module antenna, 868 MHz multi-bit
2x mini hand transmitters 2-channel, 868 MHz multi-bit
Universal installation kit for swing and sectional doors
Power cable with Euro plug, 1,500 mm
