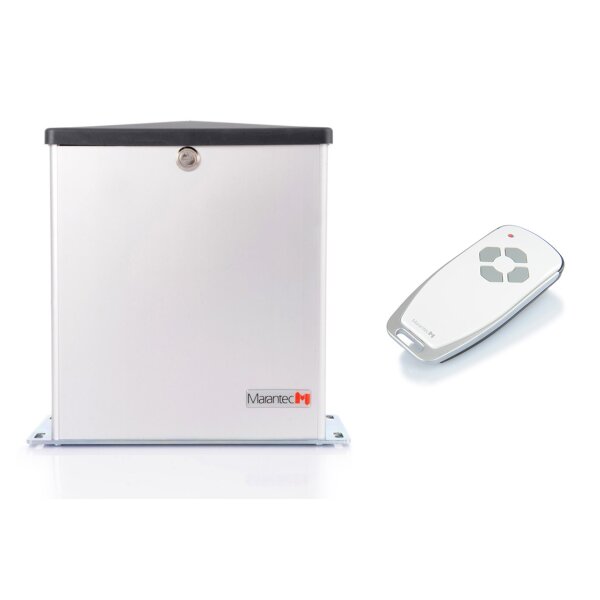

Marantec Comfort 861 S Sliding Gate Operator
Equipped with Marantec's new bi-linked technology
The Marantec Comfort 861 S is the successor to the Marantec 860 S and also features the new bi-linked technology. The unidirectional radio signal is therefore not only particularly secure but also very useful. The technology impresses not only with a remote control in elegant design but also stands out with its absolutely secure bidirectional radio encryption .
Sliding gate operator with 800 N and plenty of helpful features for everyday use
The Comfort 861 S sliding gate operator from Marantec is characterised by its robust steel housing and quiet operation. The integrated soft start and soft stop protect both the operator and the gate. This powerhouse from Marantec can open and close sliding gates weighing up to 800 kg with a maximum width of 8 m. Extensive connection options allow for the expansion of the operator with accessories such as safety beams, signal lights, buttons, key switches, and more. The height-adjustable drive pinion simplifies installation and fine-tuning from the drive to the rack.
Marantec quality since 1957
The company Marantec has been producing drive technology since 1957 and is thus one of the oldest manufacturers in the industry. The uncompromising quality is underscored by the manufacturer from Marienfeld with a 5-year warranty on its gate operators, including the Comfort 861 S. Marantec operators are "Made in Germany".
.
Features:
- Energy-saving technology
- Reference point technology
- Soft start/soft stop/soft run
- Electronic obstruction detection
- Blocking protection
- Run time limitation
- Integrated release
- Access to housing via lockable cap
- Integrated evaluation 8.2 kOhm
- Height-adjustable pinion (70 mm)
- Marantec EOS programming
- Programming and status indication via LC display
- Programmable direction reversal
- Automatic approach function ? only in conjunction with safety beam
- Gate opening time and pre-warning time separately programmable
- Illumination duration programmable
- Illumination switchable via radio
- Automatic shut-off UP and DOWN separately programmable
- Partial opening programmable
- Running speed UP and DOWN separately programmable
- Soft run position UP and DOWN separately programmable
- Soft run speed UP and DOWN separately programmable
- Relay output programmable: signal light, gate position OPEN or CLOSED, wipe pulse (1 s), fault, lighting
- Maintenance and cycle counter readable
- Maintenance interval programmable
- Error signalling with error memory
- Multi-stage reset function (control, safety, radio, etc.)
Connections:
- Button (conventional)
- Button (MS-Bus)
- Marantec safety beam OPEN and CLOSED (conventional)
- Third-party safety beam OPEN and CLOSED (conventional)
- Hold circuit (conventional)
- Closing edge safety 8.2 kOhm OPEN and CLOSED (conventional)
- Signal light 24 V (conventional)
- Battery backup
- Power supply for external elements 24 V DC (max. mA) (conventional): 50
