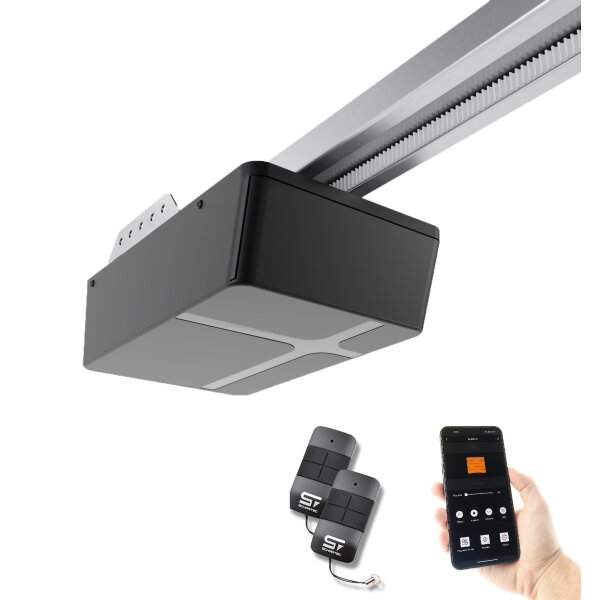

Schartec WiFi Garage Door Opener Prime 1500 Series 2 with L-Rail

Schartec WiFi Garage Door Opener Prime 1500 Series 2 with L-Rail

SKU: ST801016-L

Smart garage door opener 1500 N with WiFi and 2 remote controls with L-rail

£ 309.00

incl. 20% VAT , plus

Available immediately
Delivery time: ca. 2 - 3 Workdays (GB - int. shipments may differ)

Description
Reviews
PDF (1)

Schartec Prime 1500 Series 2 Smartphone Garage Door Opener

Ready-to-install complete set for garage doors up to 18 m² door area.

New in Prime Series 2:

Integrated Wi-Fi in the drive – no external gateway required like with other manufacturers. The drive connects to your smartphone in just a few minutes
Extremely powerful with 1500 N - probably the strongest garage door opener on the UK market
Comprehensive SCHARTEC Smart App – can also control other smart home devices (requirement: Tuya-compatible)
Adjustable electronic button lock – protects against accidental operation of the remote controls
TÜV GS certified – maximum safety and quality

Benefits at a glance:

Wi-Fi integrated in the drive
Free SCHARTEC Smart App for more than just garage door openers available for download
Controllable with Google Assistant
Adjustable button lock for remote controls
extremely powerful with 1500 N
TÜV GS certified safety and quality
Strong toothed belt with 6 steel cables – other manufacturers often use only 4–5 steel cables
Hidden display – ensures an elegant design and prevents unauthorised adjustment of the drive
Remote control with soft-touch keypad and improved pressure point – prevents accidental activation of the remote in your pocket
Reinforced ceiling brackets (folded) – more stable suspension of the rail
Energy-efficient LED lighting
Soft start and soft stop (gentle on the drive)
Adjustable ventilation position (ideal for insulated sectional doors)
Increased safety thanks to automatic obstacle detection
Adjustable automatic closing (in conjunction with light barrier)
Enhanced break-in resistance thanks to delay security
Radio receiver with rolling code encryption
Quiet operation
Solid steel base plate
Folded rail brackets
Powerful motor
Hidden display (not accessible from outside)
Transformer with temperature detection
Electronic end position adjustment
Remote control with soft-touch keypad and improved pressure point
Easy installation and programming
Large display for programming (most drives in this price range usually do not have a display)
Extremely durable motor, also used by other well-known manufacturers (has passed endurance tests of up to 20,000 door cycles)
3-year manufacturer's warranty (see warranty conditions in the manual)

Connection options:

Light barrier
Warning light
Push button/key switch
Pass door contact

WARNING! Electric doors should only be operated when they are visible. If you wish to operate the Schartec Prime Wi-Fi garage door opener with your smartphone without having the garage door in sight, the PLS1 light barrier is required as a second safety device.

IMPORTANT! The Schartec Prime can be controlled with the Schartec Smart App and Google Assistant, but not via Amazon Alexa (Echo). This option is only available when integrating third-party devices into the Schartec Smart App that are also compatible with Amazon Alexa.

Select the drive rail suitable for the door height as indicated in the table:

	Up-and-over door	Sectional door
Up to 2400 mm height	K-rail	K-rail
Up to 2600 mm height	K-rail	M-rail
Up to 2750 mm height	M-rail	M-rail
Up to 2950 mm height	M-rail	L-rail
Up to 3250 mm height	L-rail	L-rail
Up to 3450 mm height	L-rail	-

NOTE

For large and heavy garage doors (e.g. wooden doors and large sectional doors), a second rail suspension is recommended for more stability. In this case, the metal rails on the motor can be used together with additional ceiling brackets (Schartec part number ST104039).

The garage door opener is intended exclusively for the impulse operation of spring-balanced sectional and up-and-over doors in the private/ non-commercial sector. Door systems that are located in the public area and only have a protective device, e.g. force limiter, may only be operated under supervision. The garage door opener is designed for operation in dry Rooms.

There are no reviews in the current language.

Manual Schartec Prime Series 2 Garage Door Opener

Manual Schartec Prime Series 2 Garage Door Opener

Advantages

1500 N power package
modern & smart with app control
3 years warranty
TÜV GS certified

Technical Data

PRIME 1500
Power Supply	220-240 V, 50-60 Hz
Max. Pulling Force	1500 N
Max. Door Area	18 m²
Max. Weight	180 kg
Max. Door Height Sectional Door	3250 mm (L-Rail)
Max. Door Height Swing Door	3450 mm (L-Rail)
Max. Door Width	6000 mm
Max. Door Width Wooden Swing Doors	5000 mm
Drive Rail	Belt
Opening Speed	120 mm/second
Power Consumption	300 W
Power Consumption Standby	approx. 5 W
End Position Adjustment	Electric
Radio Frequency	433.92 MHz
Coding	Rolling Code
Memory Capacity	20 different codes
Connection for Warning Light	included
Operating Temperature	-20°C to +40°C
Protection Class	20 IP
Total Length Drive with K-Rail	3205 mm
Total Length Drive with M-Rail	3705 mm
Total Length Drive with L-Rail	4205 mm

Delivery Scope

Garage door opener Prime 1500 Series 2
L-rail
2 pcs. Schartec Remote Control T11 4-channel (black)
Mounting materials
Instructions
