Comfort SU700 Sliding Gate Opener Complete-Kit from Marantec
The SU700 sliding gate operator from Marantec is suitable for sliding gates up to 700 kg gate weight thanks to its powerful motor. With Marantec quality "Made in Europe", the sliding gate operator is very durable and robustly constructed. The high-quality gearbox ensures a stable and smooth operation of the gate. Two included remote controls and a safety beam complete the SU700 package.
A Marantec Sliding Gate Operator with Many Features for Enhanced User Comfort
The SU700 offers a variety of adjustment options. This includes, for example, automatic closing and pedestrian mode, which opens the gate just enough to allow, for instance, the postman onto the premises. Additionally, many connection options are available, such as a signal light, a button, or even external lighting. Marantec's bi-directional radio, known as bi-linked, ensures secure and stable radio transmission for the remote controls.
Marantec Quality Since 1957
The company Marantec has been producing drive technology since 1957 and is thus one of the oldest manufacturers in the industry. The uncompromising quality is underscored by the manufacturer from Marienfeld with a 5-year warranty on its gate operators, including the SU700M. All Marantec operators are "Made in Europe".
Features:
- Bi-directional radio technology thanks to bi-linked
- Deadman operation
- Semi-automatic operation
- Automatic operation
- Programmable partial opening
- Warning flash light
- 4m Toothed Racks included
- Safety beam active during passage
- Adjustable closing time after safety beam 0-900 seconds
- Slowdown function
- Adjustable slowdown FOR & BACK
- Auto-close after power failure
- Pause function during opening
- 4-step logic (O-S-C-S) programmable
- Defined opening and closing
- Cycle counter
- Service notification programmable
- LCD display
- Encoder connection
- Connection for external lighting
- Pedestrian opening
- Connection for electric lock
- Energy-saving mode
- Memory for settings
- Obstacle detection
- Connection for solar module possible
Technical Data:
- Speed 25 cm/s
- Torque 26 Nm
- Duty cycle 80%
- Power supply 230(24) V AC (V DC)
- Power consumption 1.5 A
- Motor power 345 W
- Protection rating IP 44
- Dimensions (L - W - H) 330-210-300 mm
- Weight 12.5 kg
- Operating temperature -20°C to +55°C
- Maximum door weight 700 kg
- Sound emission level = 70 dB(A)

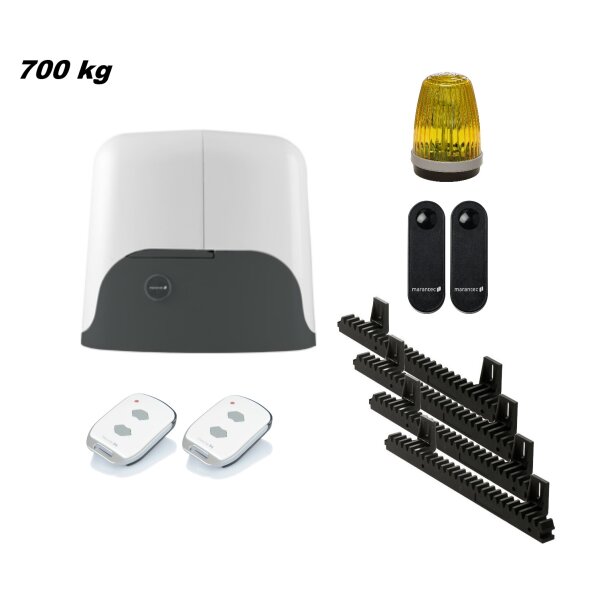

Scope of Delivery:
- 1x Comfort SU700M motor
- 1x CBX10224 control unit
- 1x LS22 photo cell
- 2x Marantec Digital 572 bi-linked 868 MHz handheld transmitters (2-channel)
- 1 x LED-Warning-Light
- 4 x Toothed Racks (4m total)
- Mounting materials
- Instructions
