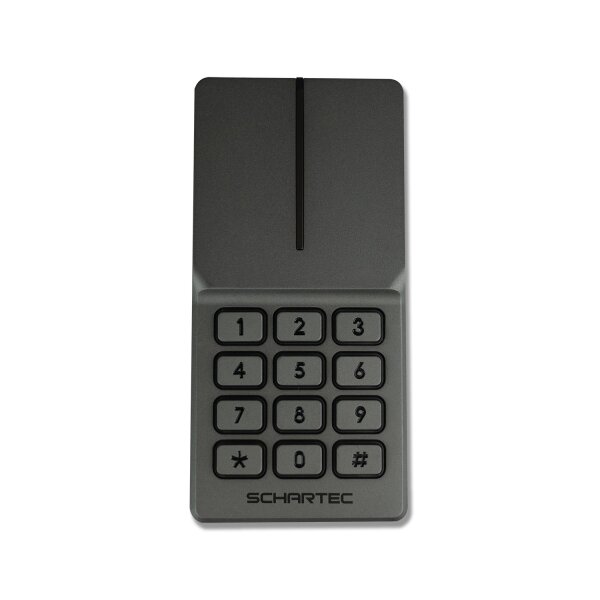

SCHARTEC Titan Vandal-Proof Keypad for Garage Doors and Entry Doors – Compatible with Multiple Systems
The rugged Titan keypad from SCHARTEC is a universal access solution, compatible with all electric gate openers and doors with electric strikes, regardless of brand. It features a single channel that can control one opener. This coded switch is ideal for use with driveway gates, garage doors, or front doors. All you need is a 12–24V DC power source (DC only – AC not supported), which is already provided by most electric openers. The keypad is hardwired, so there's no need to replace batteries as with wireless models.

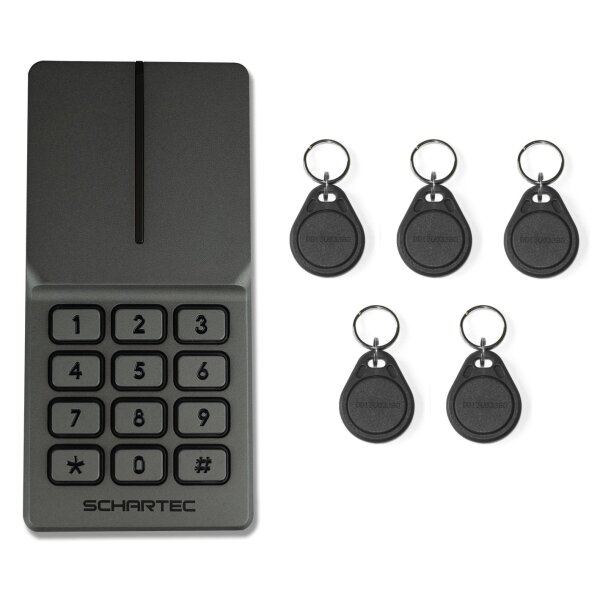

The SCHARTEC Titan keypad can also be operated using RFID transponder chips, available as accessories.
The SCHARTEC Universal Keypad Is Vandal-Proof
This code lock impresses with its extremely robust design, premium construction, and top-quality materials. Both the buttons and the casing are made of solid aluminium-zinc alloy, offering excellent protection against weather, damage, and even vandalism. With an IP68 protection rating, it is fully suitable for outdoor use.
A Premium Keypad with Versatile Features
The SCHARTEC Titan can store up to 2,000 user codes, allowing easy access to your door or gate via PIN entry. You can also programme RFID transponders (sold separately) for contactless access. An administrator password prevents unauthorised users from adding or deleting codes or transponders. When used with an electric strike door, the unlock time (hold time) can be set in seconds.
Compatible with:
- Schartec Prime
- Schartec Move
- Schartec Porte
- Schartec Jet
- Third-party systems with a button input
IMPORTANT: When used with gate openers, the relay time must be adjusted to 500 ms – 1 second depending on the model (e.g. 1 second for Hörmann, 500 ms for Schartec). The default setting is 5 seconds (suitable for front doors).
