Advantages
- Extremely robust & safe
- 3 years warranty
- TÜV GS certified
Technical Data
| MOVE 600 | |
| Power Supply | 220-240 V, 50-60 Hz |
| Max. Pulling Force | 600 N |
| Max. Door Area | 10 m² |
| Max. Weight | 100 kg |
| Max. Door Height Sectional Door | 2400 mm (K-rail) |
| Max. Door Height Swing Door | 2600 mm (K-rail) |
| Max. Door Width | 5000 mm |
| Max. Door Width Wooden Swing Doors | 3500 mm |
| Drive Rail | Belt |
| Opening Speed | 160 mm/second |
| Power Consumption | 200 W |
| Power Consumption Stand-by | approx. 2.5 W |
| End Position Adjustment | Electric |
| Radio Frequency | 433.92 MHz |
| Coding | Rolling Code |
| Memory Capacity | 20 different codes |
| Connection for Warning Light | included |
| Operating Temperature | -20°C to +40°C |
| Protection Class | 20 IP |
| Total Length Drive with K-rail | 3155 mm |
| Total Length Drive with M-rail | 3655 mm |
| Total Length Drive with L-rail | 4155 mm |
Delivery Scope

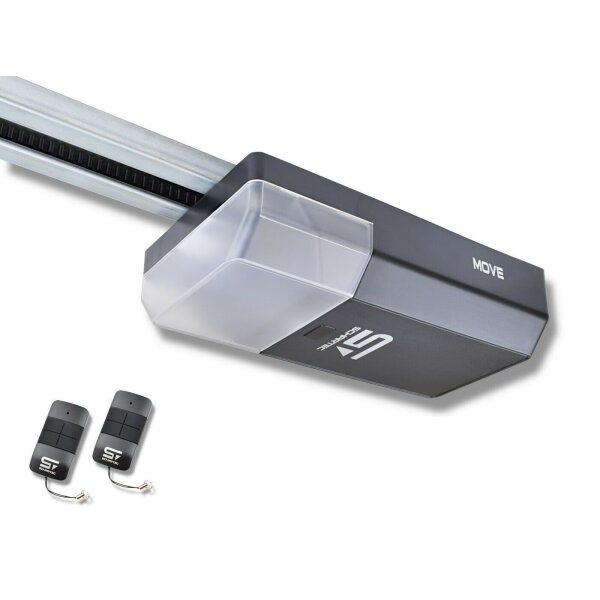

- Garage door opener Move 600 Series 3
- K-rail with timing belt
- 2 pcs.Schartec T11 4-channel remote control (black)
- Mounting material
- Instructions
