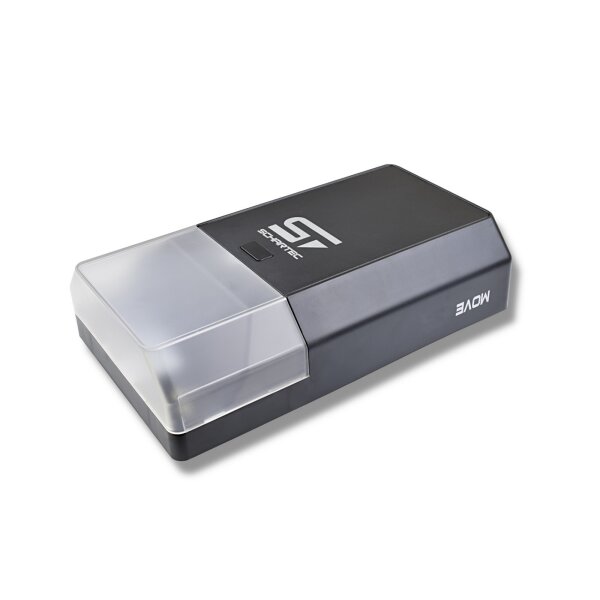

Schartec Move 1000 Series 3 Drive Unit

Drive head 1000 N including 2 remote controls

£ 139.00

incl. 20% VAT , plus

Schartec Move 1000 Series 3 Drive Head as Replacement Head for Existing Schartec Garage Door Drive

Adjustable Ventilation Position – previously only available in the Prime model
Hidden Display – provides an elegant design and prevents unauthorised adjustment of the drive
Remote Control with Soft-Touch Keypad and Improved Pressure Point – prevents accidental activation of the remote when in your pocket
Reinforced Ceiling Hangers (folded) – ensures a more stable attachment of the rail
TÜV GS Certified – maximum safety and quality

Drive head only with accessories as a replacement drive for existing Schartec rail

TÜV GS certified safety and quality
Energy-efficient LED lighting
Soft Start and Soft Stop (gentle on the drive)
Adjustable ventilation position (ideal for insulated sectional doors)
Increased safety thanks to automatic obstacle detection
Adjustable automatic closing (in conjunction with light barrier)
Enhanced break-in resistance due to delay security
Radio receiver with rolling code encryption
Quiet operation
Solid steel base plate
Folded rail hangers
Powerful motor
Hidden Display (not accessible from outside)
Transformer with temperature detection
Electronic end position adjustment
Remote control with Soft-Touch keypad and improved pressure point
Easy installation and programming
Large display for programming (most drives in this price range do not have a display)
Extremely durable motor, also used by other well-known manufacturers (has passed endurance tests of up to 20,000 door cycles)
3-year manufacturer's warranty (see warranty conditions in the manual)

Choose the drive rail suitable for the door height, as indicated in the table:

There are no reviews in the current language.

Power Supply	220-240, 50-60 V, Hz
Max. Pulling Force	1000 N
Max. Gate Area	14 m²
Max. Gate Weight	140 kg
Gate Height in combination with:
K-Rail	max. 2400 mm
M-Rail	max. 2750 mm
L-Rail	max. 3250 mm
Max. Gate Width	5500 mm
Max. Gate Width for Wooden Swing Gates	5000 mm
Opening Speed	160 mm/second
Power Consumption	245 W
Standby Power Consumption	approx. 2.5 W
End Position Adjustment	Electric
Radio Frequency	433.92 MHz
Coding	Rolling Code
Memory Capacity	20 different codes
Operating Temperature	-20°C to +40°C
Protection Class	20 IP
