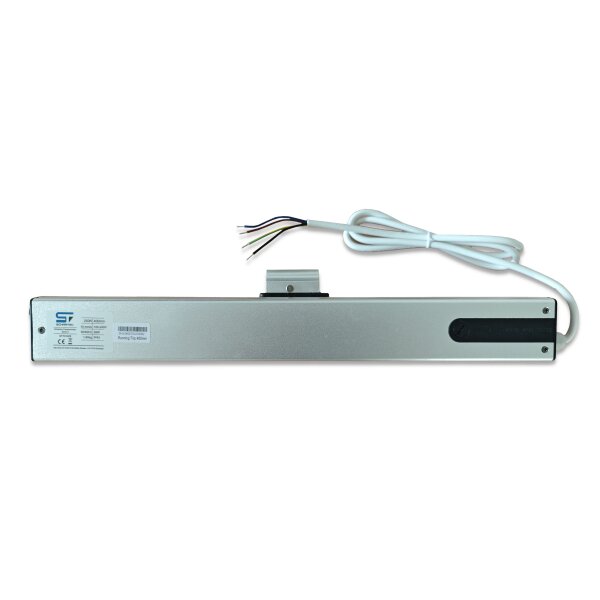

Schartec Window Motor – Suitable for Windows and Roof Windows
The AM56 window motor is suitable for top-hinged windows, bottom-hinged windows, and roof windows alike. The Schartec window actuator is ideal for retrofitting or replacing a faulty window motor. The chain, made from double-layer stainless steel, ensures stable and smooth operation. The window motor has been tested for 10,000 cycles, making it very robust and durable. Thanks to the built-in overload protection, the motor is additionally safeguarded against overload. You can also adjust the opening travel (stroke) from 100 to 400 mm.
Schartec also offers the matching switch for the window motor.
Want to control the Schartec window motor via remote control?
No problem! In combination with the Schartec FE1 radio receiver or the UFE1 flush-mount receiver, you can make your window motor radio-controlled. Simply connect the Schartec window motor to the respective radio receiver and then operate your window by remote control. The Schartec RH1 radio remote control is suitable as a remote control for your window.
For use with inward-opening windows, there is an adapter bracket for the Schartec window motor.
Benefits at a glance:
- Adjustable stroke from 100 to 400 mm
- Powerful 250 N force
- Slim design
- Easy installation
- Chain made of double-layer stainless steel
- Built-in overcurrent and overload protection
- Tested up to 10,000 cycles
Technical specifications:
- Power supply: 100-240 V AC
- Push and pull force: 250 N
- Power consumption: 28 W
- Current draw: 0.18 A / max. 0.5 A
- Speed: 10 mm/second
- Adjustable stroke: 100 - 400 mm
- Protection rating: IP43 (suitable for indoor use)
- Dimensions (LxWxH in mm): 563 x 50 x 40
- Model: AM56
Scope of delivery:
- Window motor
- Installation materials
- Manual
IMPORTANT! The window motor is intended exclusively for use in dry indoor areas.
