Marantec Comfort KRA4224E Double Swing Gate Operator Kit
The Marantec Comfort KRA4224E is a powerful and reliable automation kit for double-leaf swing gates. Designed for gate leaves measuring up to 4 metres wide, 2 metres high and 600 kg, this premium 24 V system combines robust construction, precise movement and extensive programming options.
Each operator is equipped with an integrated encoder, allowing the control unit to monitor the gate position and movement with a high level of precision. Current-sensitive obstacle detection automatically stops and reverses the gate if an obstruction is detected, providing additional operational safety.
The operators feature a strong powder-coated die-cast aluminium housing, UV-resistant covers and protected internal mechanical components. The concealed drive mechanism and quiet operation make the KRA4224E suitable for demanding residential and light commercial gate installations.
Suitable for Double Swing Gates
- Maximum gate leaf width: 4,000 mm
- Maximum gate leaf weight: 600 kg
- Maximum gate leaf height: 2,000 mm
- Maximum opening angle: 120°
- For level swing gates without an incline
The actual permissible gate size and weight may depend on the gate design, hinge geometry, wind exposure and installation conditions.
Key Features
- Integrated encoder for precise gate movement and position monitoring
- Current-sensitive obstacle detection with automatic reversal
- Soft start, soft stop and individually adjustable soft-running phases
- Separate speed settings for opening and closing
- Automatic closing function
- Programmable pedestrian or partial-opening position
- Separately programmable open time and warning time
- Programmable lighting duration with remote-control switching
- Integrated cycle counter and programmable maintenance interval
- Error signalling and straightforward reset function
- Quiet, concealed drive mechanism
- Weather-protected mechanical components
- Robust die-cast aluminium housing
- UV-resistant plastic covers
- Adjustable gate and post brackets for easier installation
CBX20224H Control Unit
The supplied CBX20224H external control unit includes an integrated 868 MHz bi-linked radio receiver. Programming and status information are displayed via LEDs, while standard and advanced menus allow the system to be configured for different gate installations.
- Integrated 868 MHz bi-linked radio receiver
- Connections for conventional wall switches and push buttons
- Connections for opening and closing photocells
- Connection for an 8.2 kOhm safety edge
- Connection for a 24 V DC warning light
- Connection for a 12 V AC electric gate lock
- Connection for a stop circuit
- Battery-backup connection and space for compatible backup equipment
- 24 V DC accessory output, maximum 250 mA
Technical Specifications
| Operator model |
Comfort RA4224E |
| Number of gate leaves |
2 |
| Motor voltage |
24 V DC |
| Power supply to control unit |
230 V AC, 50/60 Hz |
| Maximum force |
2,000 N |
| Maximum movement speed |
1.5 cm/s |
| Maximum opening angle |
120° |
| Maximum stroke |
415 mm |
| Protection rating |
IP44 |
| Operating temperature |
-20°C to +55°C |
| Operator dimensions |
844 × 100 × 104 mm |
| Weight per operator |
8 kg |
| Radio frequency |
868 MHz bi-linked |
Kit Contents

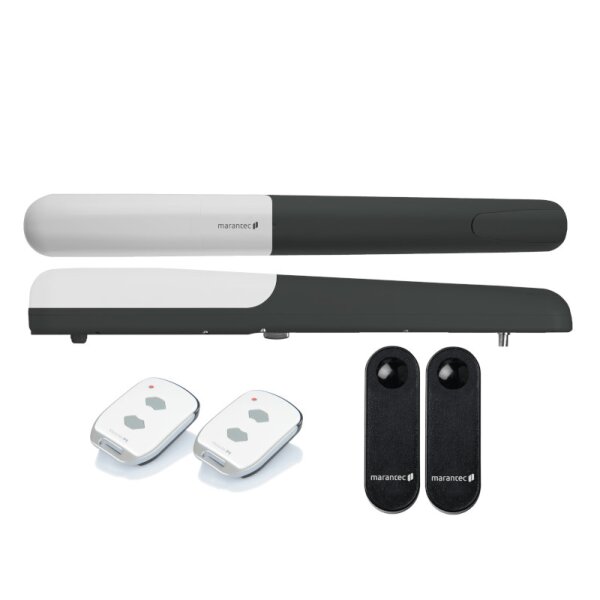

- 2 × Marantec Comfort RA4224E swing gate operators
- 1 × Marantec CBX20224H external control unit with integrated 868 MHz bi-linked receiver
- 2 × Marantec Digital 572 two-channel micro remote controls
- 1 × Marantec LS22 through-beam photocell set
- 1 × FCRAY opening-direction mechanical end stop
- Adjustable gate and post mounting brackets
Important Installation Information
The motor and photocell connection cables are not included. Suitable cabling must be supplied separately. Marantec specifies motor cabling of 2 × 1.5 mm² and 3 × 0.5 mm². Installation should be carried out by a suitably qualified person and must comply with the relevant electrical and gate-safety requirements.
