Marantec Comfort SU1100 Sliding Gate Opener complete Kit with bi-linked Technology "Made in Europe"
The Comfort SU1100M sliding gate opener is designed for very heavy gates with a maximum leaf weight of 1100kg. It features a very robust reduction gear with self-supporting bearing, ensuring high performance. The very quiet mechanism of the sliding gate opener is protected by a sturdy, powder-coated aluminium die-cast housing.
Sliding Gate Operator Power Package with Many Features for Enhanced User Comfort
The SU1100 offers a variety of adjustment options. This includes, for example, automatic closing and pedestrian mode, which opens the gate just enough to allow, for instance, the postman onto the premises. Additionally, many connection options are available, such as a signal light, a button, or even external lighting. Marantec's bi-directional radio technology, known as bi-linked, makes the radio transmission of the remote controls secure and stable.
Marantec Quality Since 1957
The company Marantec has been producing drive technology since 1957 and is thus one of the oldest manufacturers in the industry. The uncompromising quality is underscored by the manufacturer from Marienfeld with a 5-year warranty on its gate operators, including the SU1100M. Marantec drives are "Made in Europe".
Features:
- Bi-Directional Radio Technology
- Deadman Operation
- Semi-Automatic Operation
- Automatic Operation
- Programmable Partial Opening
- Warning Flashing Light
- 4m Toothed Racks included
- LS Active During Passage
- Adjustable Closing Time After LS 0-900 Seconds
- Deceleration Function
- Adjustable Deceleration FOR & BACK
- Auto-Close After Power Failure
- Pause Function During Opening
- Programmable 4-Step Logic (O-S-C-S)
- Defined Opening and Closing
- Cycle Counter
- Service Notification Programmable
- LCD Display
- Encoder Connection
- Connection for External Lighting
- Pedestrian Opening
- Connection for Electric Lock
- Energy Saving Mode
- Memory for Settings
- Obstacle Detection
- Connection for Solar Module Possible
Technical Details:
- Speed 20 cm/s
- Torque 38 Nm
- Duty cycle 80%
- Power supply 230(24) V AC (V DC)
- Power consumption 1.3 A
- Motor power 300 W
- Protection rating IP 44
- Dimensions (L - W - H) 330-210-300 mm
- Weight 13 kg
- Operating temperature -20°C to +55°C
- Maximum door weight 1100 kg
- Sound emission level = 70 dB(A)

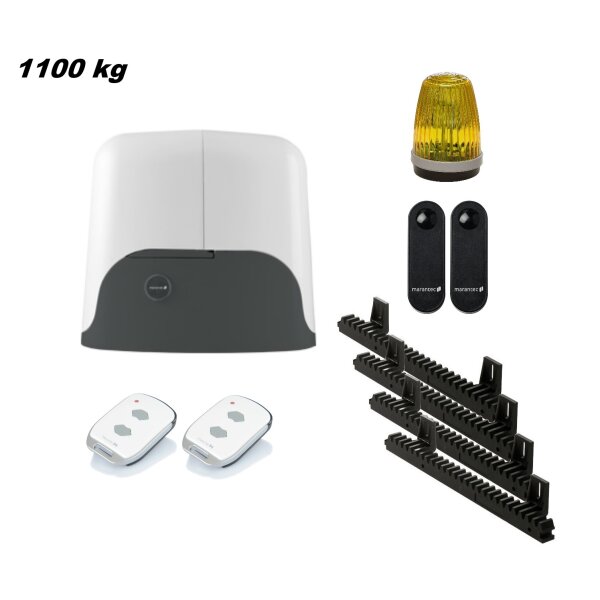

Scope of Delivery:
- 1x Comfort SU1100M motor
- 1x CBX10224 control unit
- 1x LS22 photo cell
- 2x Marantec Digital 572 bi-linked 868 MHz handheld transmitters (2-channel)
- 1 x LED Warning-Light
- 4 x Toothed Rack (4m total)
- Mounting materials
- Instructions
