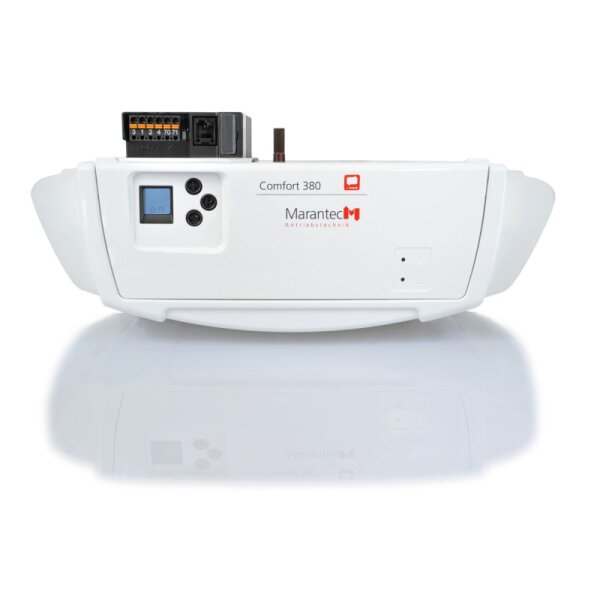

Garage Door Opener Marantec Comfort 380 bi-linked
Replacement head unit supplied without drive rail.
The Comfort 380 garage door opener is a top-of-the-range model from Marantec. With an especially powerful pulling and pushing force of 1,100 N, this opener is suitable even for very large and very heavy doors, while still being energy-efficient thanks to the patented blueline technology. Features such as soft start, anti-lift protection, anti-blocking, or high-speed operation are just some of the technical highlights of this electric door opener.
The energy-efficient LED lighting provides ample illumination inside your garage. The hand transmitters operate with Marantec’s bidirectional bi-linked radio technology. This technology not only impresses with its stylish remote controls but also stands out for its absolutely secure bidirectional radio encryption.
5-year manufacturer’s warranty (see warranty Terms)
Features:
- Energy-saving blueline technology
- High-speed function
- Electronic limit switch
- Soft start / soft stop / soft run
- Electronic anti-lift protection
- Anti-blocking system
- Run-time limitation
- Manual release via pull cord (inside)
- Drive head rotatable by +/- 90°
- Marantec EOS programming with LC display
- Reversible direction of rotation programmable
- Back jump (relief of closing edge)
- Automatic closing function (only usable with a safety light barrier)
- Connection for button, light barrier, safety circuit
- Door opening time and pre-warning time programmable
- Lighting duration programmable and switchable by radio
- Cut-off automatic OPEN and CLOSE programmable separately
- Intermediate positions OPEN and CLOSE programmable separately
- Door travel speed OPEN and CLOSE programmable separately
- Soft run position OPEN and CLOSE programmable separately
- Soft run speed OPEN and CLOSE programmable separately
- Programmable impulse input and output
- Maintenance counter (interval programmable) and cycle counter
- Error signalling with error memory
- Multi-level reset function (control, safety, radio, etc.)
- Connection (conventional) for button, light barrier and safety circuit
- Connection (MS bus) for expansion boards (boards integrable)
- Connection (MS bus) for hand programmer and expansion modules
- Connection for battery backup (backup 100 integrable)
- Output 24 V DC, max. 50 mA
Special product advantages:
- Flexible installation: the drive head can be rotated 90° left or right, making it adaptable for any installation situation. The drive lighting can also be specifically positioned for individual illumination.
- Patented force limitation: the opener reacts sensitively to obstacles, stops immediately, reverses, and thus reliably protects people and objects.
- Double burglary protection: the electronically monitored anti-lift protection prevents unauthorised opening of the door. The self-locking gearbox provides additional mechanical protection.
- Emergency release: in the event of a power failure, the door can be released from inside. An additional external release is necessary if the garage does not have a second entrance.
- Light barriers: non-contact monitoring of the door area provides additional safety for the whole family.
- Marantec door openers demonstrably meet all legal standards and also offer innovative and patented safety functions. All systems are manufactured according to DIN ISO 9001 and DIN ISO 14001.
Which rail suits your door?
ATTENTION! The new bi-linked openers work exclusively with Marantec bi-linked radio transmitters!
