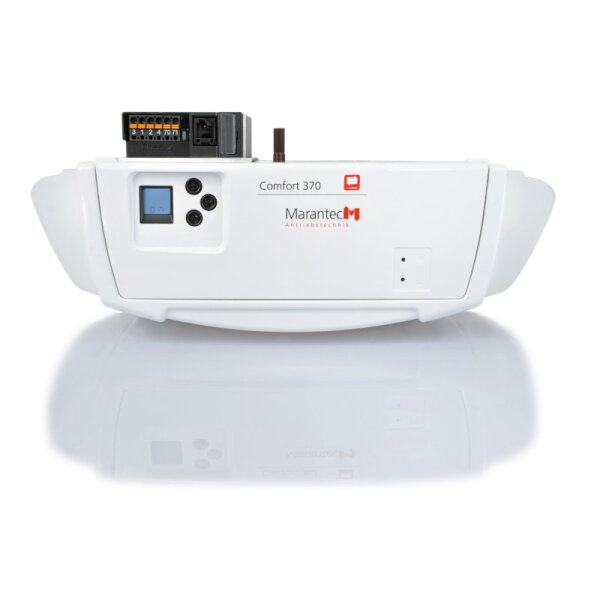

Marantec Comfort 370 bi-linked Garage Door Opener Head Unit (without Rail)
Replacement head unit is supplied without a drive rail.
The Comfort 370 is a top-of-the-line garage door opener from Marantec. With a high pulling and pushing force of 850 N, it is ideal for very large and heavy doors, while remaining energy-efficient thanks to Marantec's patented blueline technology. Features such as soft start and stop, anti-lift security, jam protection, and high-speed opening are just a few of the advanced technical highlights of this electric door opener.
The energy-saving LED lighting provides ample illumination inside your garage. The remote controls use Marantec’s bi-linked bidirectional wireless technology, offering not only stylish design but also highly secure two-way encrypted communication.
5-year manufacturer warranty (see warranty conditions)
Features:
- Energy-saving blueline technology
- High-speed mode
- Electronic end limit detection
- Soft start / soft stop / smooth operation
- Anti-lift electronic locking
- Jam protection
- Travel time limiter
- Internal release via pull cord
- Drive head rotatable ±90°
- Marantec EOS programming with LC display
- Reversible drive direction
- Back jump (relieves closing edge)
- Auto-close (requires safety beam)
- Input for button, safety beam, and stop circuit
- Adjustable door opening time and pre-warning time
- Programmable light duration, switchable via remote
- Separate shutdown settings for OPEN and CLOSE
- Individually programmable intermediate positions for OPEN and CLOSE
- Adjustable travel speed for OPEN and CLOSE
- Adjustable soft-run position for OPEN and CLOSE
- Adjustable soft-run speed for OPEN and CLOSE
- Configurable input/output pulse
- Maintenance counter (programmable interval) and cycle counter
- Error memory and fault indication
- Multi-level reset function (control, safety, wireless, etc.)
- Standard connection for button, beam, and stop circuit
- MS-BUS connection for expansion boards (integrated boards)
- MS-BUS connection for handheld programming device and modules
- Battery backup connection (integrates back-up 100)
- 24V DC output, max. 50 mA
Key Product Benefits:
- Flexible Installation: The drive head can rotate 90° left or right, making it adaptable to any installation scenario. The drive’s lighting can also be positioned for custom illumination.
- Patented Force Limitation: The opener reacts sensitively to obstacles, stops immediately, and reverses to protect people and objects.
- Double Anti-Burglary Protection: The electronically monitored locking mechanism prevents unauthorised opening. The gear’s self-locking system provides additional mechanical security.
- Emergency Release: In the event of a power outage, the door can be released from inside. If your garage has no secondary access, an external release is required.
- Safety Beam: Contactless monitoring of the door area adds an extra layer of safety for the whole family.
- Marantec door openers are fully compliant with legal safety standards and go beyond with patented safety innovations. All systems are manufactured according to DIN ISO 9001 and DIN ISO 14001.
Which Rail Fits Your Garage Door?
NOTE: The new bi-linked openers only work with Marantec bi-linked remote controls!
