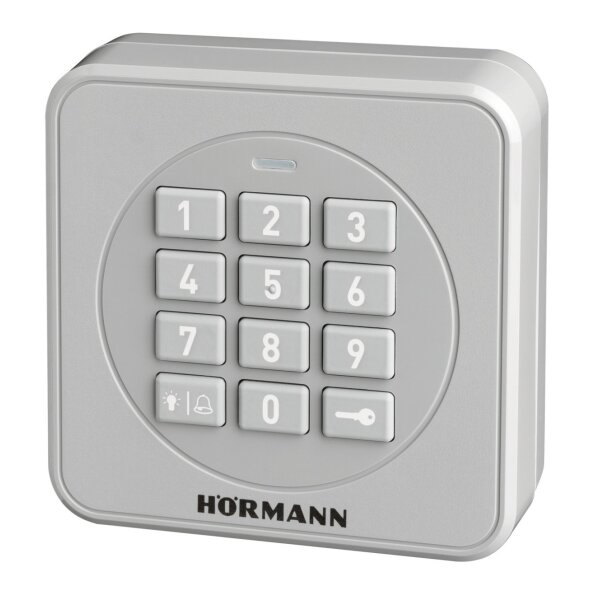

Hörmann FCT 3-1 BS code keypad for all Hörmann door operators with 868 MHz BiSecur and 868 MHz (blue buttons)
The Hörmann code lock allows you to open your garage door without a key or handheld transmitter. By entering a code of your choice, the door opens in no time at all. What's more, the Hörmann FCT 3-1 BS can control up to three different Hörmann door operators. This is ideal for several garages located next to each other. The Hörmann combination lock also has an illuminated keypad so that you can enter the code into the code keypad even in the dark.
The Hörmann radio code keypad is also colloquially referred to as a code lock or combination lock...
...although the FCT 3-1 BS radio code keypad is a Hörmann keypad and not a lock. The Hörmann garage door code keypad simply transmits a signal to the door operator, which then opens or closes the garage door. The great thing about the Hörmann FCT 3-1 BS is that it is completely wireless and operates via radio transmission. It can therefore be installed in just a few minutes, without any cables. The Hörmann wireless code keypad is programmed directly on the operator.
If you would like a Hörmann code lock with a protective cover or need more channels, we recommend the Hörmann FCT 10-1 BS. In addition, the Hörmann combination lock is backward compatible with all Hörmann operators with 868 MHz (handheld transmitters with blue buttons).
Compatibility:
- SupraMatic E/P series 1,2 (868 MHz) 3,4 (868 MHz BiSecur)
- SupraMatic HT BiSecur
- ProMatic series 3,4 BiSecur
- ProMatic battery series 1,2 (868 MHz)
- RollMatic BiSecur
- RotaMatic P / PL (868 MHz and 868 MHz BiSecur)
- RotaMatic Akku Solar (868 MHz and 868 MHz BiSecur)
- VersaMatic / P BiSecur
- VesaMatic Akku Solar BiSecur
- LineaMatic / P (868 MHz and 868 MHz BiSecur)
- LineaMatic Battery Solar (868 MHz and 868 MHz BiSecur)
Technical data:
- Impulse
- Illuminated keypad
- Activation after pressing a button
- Power supply: 2 x 1.5 V LR03/AAA batteries
- Plastic housing, light gray RAL 7040 color
- 3 channels: for controlling up to 3 gate operators or functions
- Protection class IP44
- Temperature range: -20°C to +50°C
- Power supply: 2 x 1.5V LR03/AAA batteries
- FCT 3-1 BS flush-mounted dimensions: (W x H x D): 80 x 80 x 15 mm
- FCT 3-1 BS surface-mounted Dimensions: (W x H x D): 80 x 80 x 30 mm
Scope of delivery:
- FCT 3-1 BS wireless code keypad (868 MHz BiSecur)
- Battery
- Instructions
ATTENTION! Can only be used with Hörmann receivers with 868 MHz and/or 868 MHz BS (BiSecur technology).
