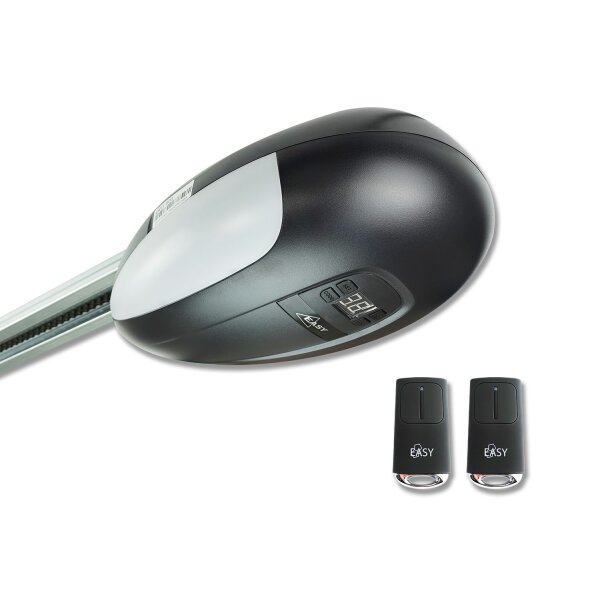

Easy 800 V2 Garage Door Opener

SKU: ST601001

Complete garage door opener set 800 N with rail and 2 remote controls

£ 149.00

incl. 20% VAT , plus

Available immediately
Delivery time: ca. 2 - 3 Workdays (GB - int. shipments may differ)

Description
Reviews
PDF (1)

Easy 800 V2 Garage Door Opener - Powerful and Reliable

The electric garage door opener Easy 800 comes as a ready-to-install complete set including a rail and two remote controls. It is characterised by solid technology and easy installation. The Easy 800 is ideal for private home use in a single garage.

While most garage door operators only have a light unit, the Easy 800 garage opener features two LED light units (left & right). Thanks to this dual LED lighting, this electric door operator is not only economical but also provides ample illumination. The two remote controls are well-made with a soft-touch surface and a firm pressure point. The robust design of the remote controls, with a long loop at the bottom, allows for easy carrying on a keyring or in a pocket.

With its 800 N, the door operator is suitable for sectional doors with up to 12 m² door area (wooden up-and-over doors up to 7 m²) and can move up to 120 kg. The operator is suitable for sectional doors up to a height of 2250 mm and a door width of 5000 mm; for wooden doors, it is suitable up to a height of 2250 mm and a width of 3000 mm. Thanks to its soft start and soft stop function, the Easy 800 protects the gearbox and door mechanics, thus increasing the lifespan of both the operator and the garage door. The clear LED display allows for simplified menu navigation, enabling various settings to be adjusted in just a few steps.

Features:

Dual LED lighting (left and right)
Safety reverse according to EN 12453
Soft start and soft stop
Rail (3 metres long) with a sturdy chain
2 premium remote controls
LED display for simplified menu navigation
Powerful and durable 800 N motor (tested up to 15,000 door cycles)
Adjustable automatic closing (only in combination with a safety beam)
2 years warranty (see warranty conditions T&Cs)

Connections:

Internal button/key switch
Safety beam
Signal light

There are no reviews in the current language.

Manual/Instrutions Easy 800 Garage Door Opener

Manual/Instrutions Easy 800 Garage Door Opener

Advantages

Ready-to-install complete set
Easy and quick assembly
Two integrated light units

Technical Data

Easy 800
Pull and Push Force	800 N
Opening Speed	130-150 mm/s
Standby Power	approx. 3 W
Frequency	433 MHz Rolling-Code
Operating Temperature	-20°C to +50°C
Max. Gate Weight	80 kg
Max. Allowed Gate Height Sectional Gate	2250 mm
Max. Allowed Gate Width Sectional Gate	5000 mm
Max. Allowed Gate Leaf Area Sectional Gate	11.25 m²
Max. Allowed Gate Height Wooden Gate	2250 mm
Max. Allowed Gate Width Wooden Gate	3000 mm
Max. Allowed Gate Leaf Area Wooden Gate	7 m²

Delivery Scope

1x Garage door opener Easy 800
1x Rail (3-piece)
2x Remote controls
1x Accessory package
1x Manual (German and English)
