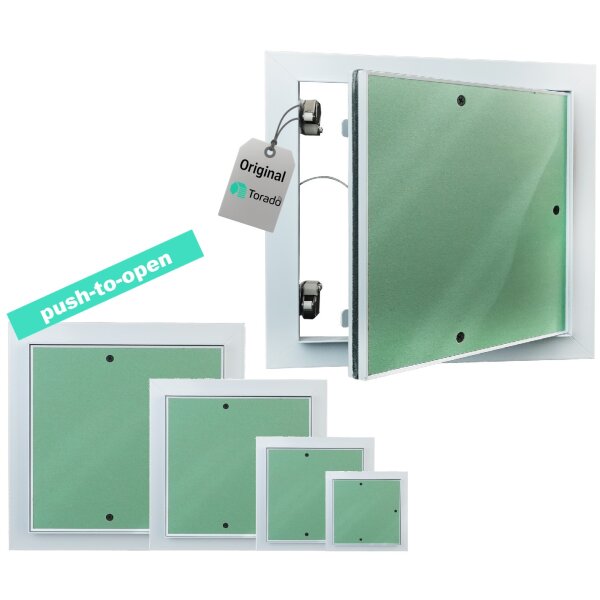

Drywall access panel with plasterboard infill in different sizes
Are you looking for a suitable access opening for your plasterboard wall or ceiling? Our access panel in white provides neat, almost invisible access to all kinds of installations. Whether for plumbing, electrical or technical areas – this inspection hatch is the right choice.
The access panel impresses with its discreet, flush finish and, above all, its high functionality. Thanks to the 12.5 mm plasterboard infill, it blends harmoniously into existing drywall surfaces and can be painted over with ease.
The sturdy aluminium frame ensures a durable, dimensionally stable construction. The integrated push-to-open system allows the hatch to be opened and closed comfortably with a press – no handle or lock required.
Flexibility:
The access panel is available in various sizes and is suitable for installation in wall and ceiling surfaces. The removable door leaf makes installation and maintenance work much easier. This gives you quick access at any time to pipes, connections or service shafts. Suitable for damp areas such as bathrooms or cloakrooms.
Functionality:
The push-to-open closure (push lock system) enables tool-free opening with light pressure on the door leaf. The all-round 4-sided brush seal reduces dust and air passage and ensures a clean finish between the frame and the door. The access panel is fitted into a prepared opening and installed professionally.
Suitable for:
- Residential rooms
- Commercial premises
- Sanitary installations
- Technical and service areas
- Damp rooms (e.g. bathroom, cloakroom)
Benefits at a glance:
- easy installation in drywall
- discreet, flush finish
- push-to-open system – no handle required
- removable door leaf
- all-round brush seal
- white-coated aluminium frame
- suitable for wall and ceiling installation
- suitable for damp rooms
- durable and robust design
Technical data 200 x 200:
- Nominal size: 200 x 200 mm
- Installation size: approx. 204 x 204 mm
- Overall size: approx. 252 x 252 mm
- Frame material: aluminium, white-coated
- Frame thickness: 1 mm
- Infill: standard
- Plasterboard infill thickness: 12.5 mm
- Closure: push-to-open (push lock)
- Hinge: removable
- Seal: 4-sided brush seal
- Installation type: wall and ceiling installation
- Suitable for damp rooms: yes
Technical data 300 x 300:
- Nominal size: 300 x 300 mm
- Installation size: approx. 304 x 304 mm
- Overall size: approx. 352 x 352 mm
- Frame material: aluminium, white-coated
- Frame thickness: 1 mm
- Infill: standard
- Plasterboard infill thickness: 12.5 mm
- Closure: push-to-open (push lock)
- Hinge: removable
- Seal: 4-sided brush seal
- Installation type: wall and ceiling installation
- Suitable for damp rooms: yes
Technical data 400 x 400:
- Nominal size: 400 x 400 mm
- Installation size: approx. 404 x 404 mm
- Overall size: approx. 452 x 452 mm
- Frame material: aluminium, white-coated
- Frame thickness: 1 mm
- Infill: standard
- Plasterboard infill thickness: 12.5 mm
- Closure: push-to-open (push lock)
- Hinge: removable
- Seal: 4-sided brush seal
- Installation type: wall and ceiling installation
- Suitable for damp rooms: yes
Technical data 500 x 500:
- Nominal size: 500 x 500 mm
- Installation size: approx. 504 x 504 mm
- Overall size: approx. 552 x 552 mm
- Frame material: aluminium, white-coated
- Frame thickness: 1 mm
- Infill: standard
- Plasterboard infill thickness: 12.5 mm
- Closure: push-to-open (push lock)
- Hinge: removable
- Seal: 4-sided brush seal
- Installation type: wall and ceiling installation
- Suitable for damp rooms: yes
Technical data 600 x 600:
- Nominal size: 600 x 600 mm
- Installation size: approx. 604 x 604 mm
- Overall size: approx. 652 x 652 mm
- Frame material: aluminium, white-coated
- Frame thickness: 1 mm
- Infill: standard
- Plasterboard infill thickness: 12.5 mm
- Closure: push-to-open (push lock)
- Hinge: removable
- Seal: 4-sided brush seal
- Installation type: wall and ceiling installation
- Suitable for damp rooms: yes
