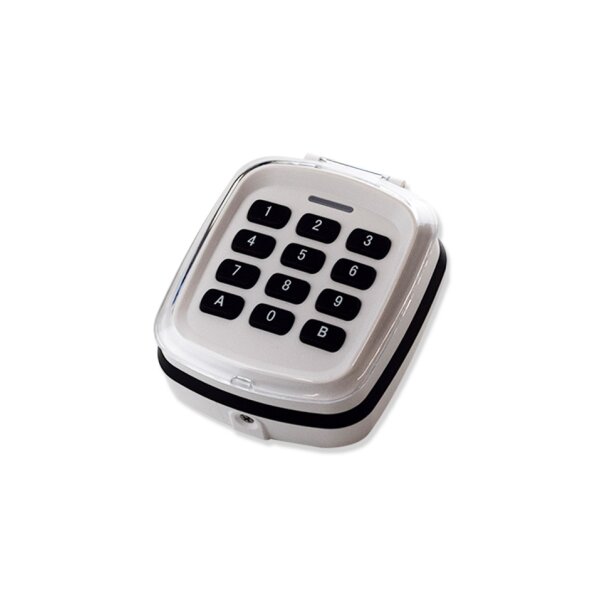

Schartec Wireless Code Keypad Compatible with 433 - 868 MHz for Various Manufacturers
This stylish and practical wireless code keypad is designed for your garage or driveway gate. It is surface-mounted and operates completely cable-free. The keypad can control up to four different compatible gate operators. By entering a self-chosen numeric code, you can open, stop, or close the selected gate. A transparent protective cover shields the keypad from weather influences. Thanks to its white casing, the keypad is less conspicuous on the exterior wall compared to black-colored keypads.
Easy and Quick Setup of the UKP-4 Code Lock for Garage and Gate Doors
No cables need to be installed for the Schartec UKP-4 numeric keypad. It works via radio with a range of up to 50 meters (depending on local conditions). Pairing the keypad with the gate operator is straightforward and can be done in just a few steps. The included manual and installation video guide you through the process. Additionally, you can set an administrator password that allows only the administrator to change access codes. Mounting takes just a few minutes using the supplied screws and plugs.
WARNING! The wireless keypad is not suitable for SCHARTEC gate operators!!!
WARNING! The wireless keypad is only compatible with the models listed below. No other manufacturers, models, or frequencies supported!!!
WARNING! Please change and write down the administrator password. Without this password, you will no longer be able to change access codes!
Compatible with:
- Came: T431 / T434 / TOP 432A / TOP 434A / TOP 432 / TAM32SA / TOP 432NA
- Dickert 433 MHz: MAHS433
- Hörmann 868 MHz (blue buttons): HSM4 / HS4 / HSE2 / HSP4 / HS1 WARNING: NOT compatible with 868 MHz BiSecur!!!
- Marantec 433 MHz: Digital 101 / 12 / 302 / 304 / 323 / 321 / 382 / 384 / 313
- Marantec 868 MHz: Digital 101 / 12 / 302 / 304 / 323 / 321 / 382 / 384 / 313 WARNING: NOT compatible with 868 MHz bi-linked (white remote)!!!
- Somfy: Telis / K-Easy / K-Easy New / K-Easy Old / Mitto / Key Go RTS / Telis RTS / Keytis RTS / Keytis RTS NS / Alarma
- Schellenberg 433 MHz: SMART Drive 10 / SMART Drive 14
- Sommer / Aperto 868 MHz: 4020V000 / 4025V000 / 4026V000 / 4031V000 / 4011V000 / 4035V002 WARNING: NOT compatible with 868 MHz SOMloq2 (Pearl / Pearl Vibe / Pearl Twin)
- Tormatic / Novoferm 433 MHz: Novotron 502 / Novotron 522 / Vivotron / MHS43-2 / MAX43-2 / MIX43-2 / Black Remote
Technical Specifications:
- Frequency range: 280 - 870 MHz
- Channels: 4
- Battery: 2 x 1.5V AAA
- Operating temperature: -10°C to +40°C
- Protection class: IP44
- Model: UKP-4
- Dimensions: 93 x 76 x 34 mm (H x W x D)
Package Contents:
- Wireless code keypad UKP-4
- 2 screws
- 2 wall plugs
- Manual in German, English, French, Italian, Dutch, Swedish
