SKU: 1xST171005-2xST171006-4xST171014

V-Profile Track with Rollers for Ground-Guided Sliding Gates

£ 69.90

incl. 20% VAT , plus

Low stock level
Delivery time: ca. 2 - 3 Workdays (GB - int. shipments may differ)

Description
Reviews

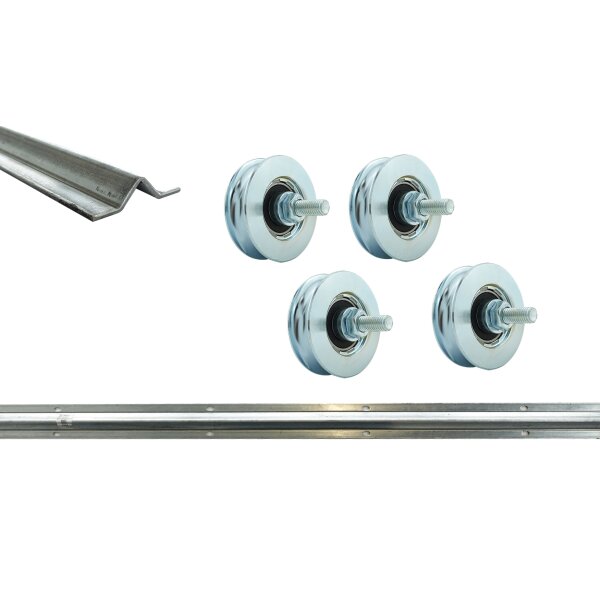

V-profile track with matching rollers as a complete set for ground-guided sliding gates

The Schartec ground track R10U is ideally suited for ground-guided sliding gates.

The track features a 92° V-groove, is made of robust steel, and is zinc-plated.

One advantage of the Schartec track is the ability to adjust to the desired length by joining multiple tracks together.

The matching rollers are included in this set. They are made of zinc-plated steel, making them corrosion-resistant.

Technical Data – Track:

Material: Steel Q235B, equivalent to S235JR (1.0038)
Corrosion protection coating: white zinc-plated
V-groove: 92°
Dimensions: see technical drawing (image)

Technical Data – Rollers:

Max. load capacity: 230 kg
Material: Steel Q235B, equivalent to S235JR (1.0038)
Corrosion protection coating: white zinc-plated
Bearing type: deep groove ball bearing 6202 RS
Roller: 92° V-groove, V-notch
Hex bolt: M10 x 55 - 8.8
Hex nut: M10 - 8.8
Spacer sleeve: Ø22 x 11
Dimensions: see technical drawing (image)
