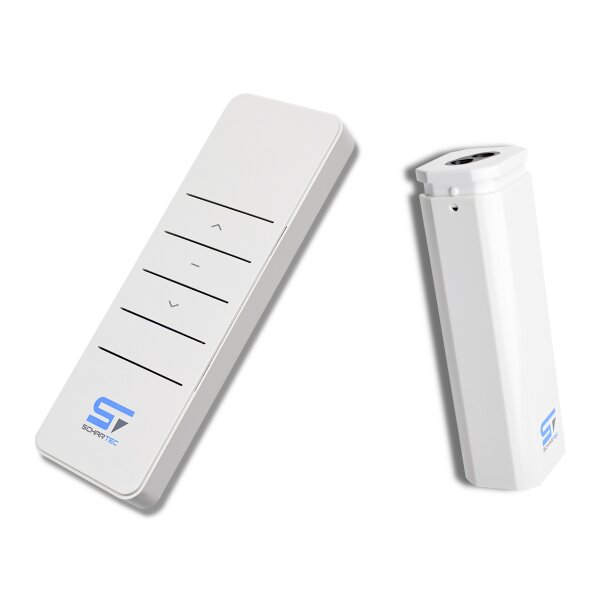

Schartec roller shutter radio receiver set for retrofitting and conversion
The Schartec roller shutter radio receiver set is ideal for retrofitting or converting electric roller shutter motors. The radio receiver is suitable for outdoor use and, thanks to its design, fits perfectly into the roller shutter box. The radio receiver for your roller shutter is simply connected between the power supply and the roller shutter motor.
Radio receiver for installation in roller shutter box
The Schartec FE1 can be easily operated with all Schartec radio transmitters. Programming the appropriate roller shutter radio accessories is child's play and can be done in just a few seconds at the touch of a button. Retrofitting with a roller shutter radio really couldn't be easier.
RH1 remote control in Schartec-Quality
The Schartec RH1 roller shutter remote control has been specially developed for specialist shops. Its attractive design and high-quality workmanship are immediately apparent when you first start using it. The magnetic wall bracket supplied also allows you to attach the roller shutter remote control to the wall.
Special features of the radio receiver:
- Compact design
- Suitable for outdoor use (installation in roller shutter box)
- Programming in a few seconds
- Easy connection
- Long range
- Can store up to 20 Schartec radio transmitters
Technical data of the radio receiver:
- Frequency: 433.92 MHz
- 230 V/ 50 Hz
- Output power: 500 W
- Memory capacity: 20 radio transmitters
- Dimensions: 113 x 37 x 31 mm
- Protection class: IP55
- For tubular motors with max. 120 Nm
- Operating temperature: -10°C to +50°C
- 2-year warranty (see warranty conditions in the terms and conditions)
Special features of the remote control:
- Elegant design
- High-quality workmanship
- Easy programming
- Long range
- Includes magnetic wall mount
Technical data for the remote control:
- Frequency: 433.92 MHz
- Transmission power: 10 mW
- Channels: 1
- Battery: 3V (CR2450)
- Operating temperature: -10°C to +50°C
- Dimensions: 130 x 45 x 11.5 mm
- 2-year warranty (see warranty conditions in the manual)
Scope of delivery:
- FE1 radio receiver
- RH1 remote control
- Battery
- Magnetic wall mount
- Mounting materials
- Instructions
