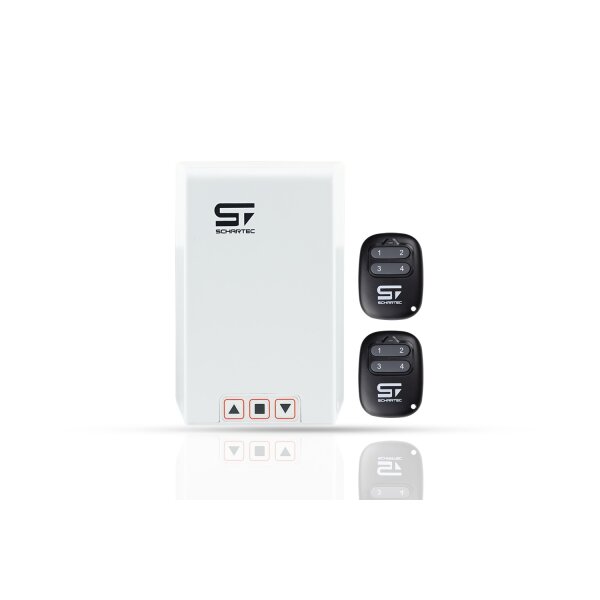

Schartec Roller Door Control 230 V with Integrated Radio Receiver, incl. 2 Remote Controls
This rollerdoor control with integrated radio receiver is ideal for retrofitting or upgrading electric roll-up door drives for private use. The radio receiver operates via impulse control but can also be used with a hold contact. The hold contact is especially useful if you want to connect other devices in the garage—such as a lamp—to the radio receiver.
The two included 433 MHz remote controls feature rolling-code encryption (rolling code) to ensure secure signal transmission.
The radio receiver has one channel, meaning it can control one roller door motor (industrial door motors excluded) or another device using a remote control.
Additionally, the external radio receiver is equipped with three push buttons on the outside of the housing, allowing operation without the remote control. The buttons can be programmed as open/stop/close commands, or you can use just one button for start/stop functions.
Features:
- NC contact or pulsed signal, or both combined
- Pulsed signal: indicator light on while light barrier is triggered
- NC contact: indicator light on while door is moving
- Button configuration: single button = open/stop/close; three buttons = open/stop/close
- Motor rotation direction adjustable
- Relay hold time adjustable
- Rolling-code encryption
- Selectable impulse or hold contact operation
- Operation possible without remote control via buttons on the housing
- High range (up to 50 m depending on local conditions)
- Resistant to radio interference
- Remote controls can be attached to keychains
Connection options:
- 230 V AC signal light (e.g. Schartec Profi Signal Light)
- External control elements
- Light barrier 1
- Light barrier 2
Technical Details:
- Power supply: 85-265 V AC/50 Hz
- Switching capacity: 735 W
- Radio frequency: 433.92 MHz rolling code
- Max. memory: 30 codes (30 remotes)
- Internal fuse: 10A
- Operating temperature: -20°C to +60°C
- Protection class: IP54
- Dimensions: 150x100x40 (LxWxH)
- Model number: TM5821
- Item number: ST201017
Scope of Delivery:
- Schartec roller door control with integrated radio receiver
- 2 x handheld transmitters (including batteries)
- Mounting materials
- Instruction manual
Exclusively compatible with Schartec remote controls:
- T6107 (Article number: ST201001)
- T3501 (Article number: ST201010)
