Schartec Reflection Light Barrier Universal for All Electric Gate Operators

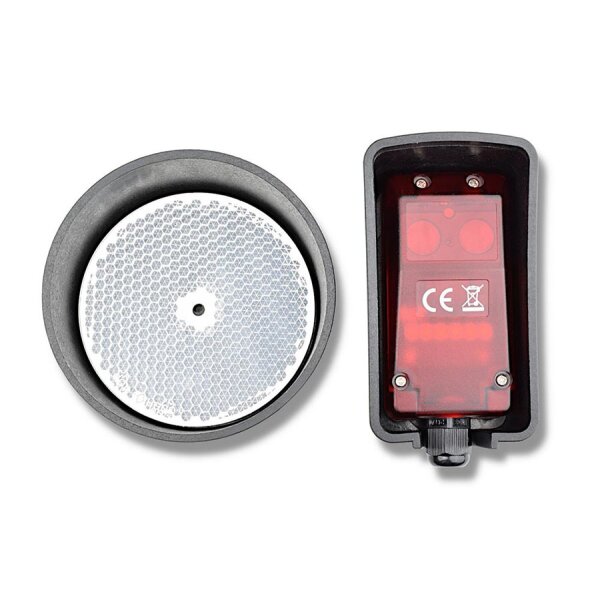

The Schartec reflection light barrier can be used either with conventional 4-wire technology or as 2-wire technology (e.g. Hörmann gate operators). The light barrier operates with a reflector and is universally applicable for all electric gate operators with a light barrier connection. The Schartec DS014 is ideally suited for garage door operators, swing gate operators, and sliding gate operators.
Light Barrier with Reflector for Enhanced Safety at Your Gate
The Schartec reflection light barrier provides additional safety for your electric gate. If the light beam is interrupted, the gate automatically opens, thus preventing personal injury or property damage. Both the reflector and the transmitter/receiver are equipped with a robust cover, ensuring that the light barrier is better protected from weather and dirt. Thanks to the reflector, there is no need to lay cables on both sides of the gate; a single cable on the side of the transmitter/receiver is sufficient.
ATTENTION! Not compatible with SCHARTEC Prime Garage Door Openers! For SCHARTEC Prime please use Photocell SCHARTEC PLS1!
Advantages at a Glance:
- Optional 4-wire or 2-wire technology (thus also compatible with Hörmann gate operators)
- Universally applicable for all common drive manufacturers
- Protective cover for reflector and transmitter/receiver module
- Fine adjustment of the transmitter/receiver module thanks to 3 adjustment screws on the circuit board
- LED display for easy alignment of the light barrier
- Error message for contamination via LED
- Up to 15 m range (depending on power supply, installation situation, and weather conditions)
- Also suitable for outdoor use (IP 67)
- Optional 12-36 V DC or 10-24 V AC power supply
Technical Data:
- Power supply: 12-36 V DC/ 10-24 V AC
- Current consumption: 30 mA/ 24 V (max)
- Switching capacity: Min 1 mA/ 5 V DC, Max 0.5 A/ 48 V AC (resistive load), Max 0.6 A/ 50 V AC
- 689 nm pulse
- <100 ms
- Angle: approx. 1.5 degrees possible
- Changeover contact
- Protection class: IP 67
- Operating temperature: -25 °C to +65 °C
- Weight: 60 g
- Dimensions: 85 * 43 * 39 mm (L*W*H)
Scope of Delivery:
- Transmitter/Receiver Module
- Reflector
- Protective Cover for Transmitter/Receiver Module
- Protective Cover for Reflector
- Mounting Material
- Instructions
Not suitable for NICE BlueBus.
