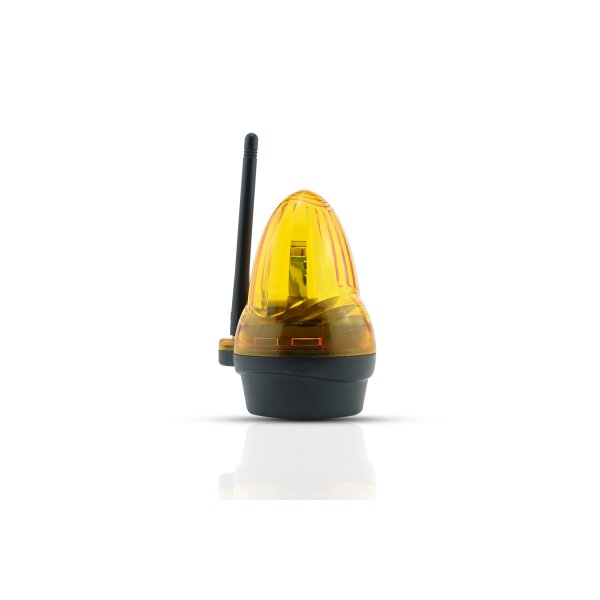

Schartec Universal Mini Signal Light
The Schartec Mini Signal Light is characterised by premium quality and many useful features. Thanks to LED technology, the light is very bright while being energy-efficient and designed for long-term use. With compact dimensions of 125x76mm, the signal lamp can be mounted in many locations, and with the included wall bracket, the warning light can also be attached to a post or wall surface, for example.
Connection and Operation - You Have the Choice
An integrated switch allows you to choose whether the signal light should operate on 85-265 V AC or 12-24 V AC/DC. This makes the warning light compatible with almost all gate controls. Additionally, it features an integrated microswitch that gives the customer the option to switch the warning light between steady and flashing modes. Thus, even controls that do not provide a flashing impulse can use this light as a flashing light.
Extended Radio Range Thanks to Extra Antenna
Another feature of the Schartec Mini Signal Light is an additional integrated rod antenna, which you can connect to your gate control's radio receiver to improve the range. This signal light thus serves as both a warning light and a rod antenna, rounded off with a modern design.
Advantages:
- Integrated switching for flashing and steady light
- Integrated rod antenna to improve the range of the radio system
- LED technology
- Operable with either 85-265 V AC or 12-24 V AC/DC
- Includes wall bracket
- Highly visible thanks to 125 mm height and 76 mm diameter
Technical Data:
- Power Supply: 85-240 V AC or 12-24 V AC/DC
- Power Consumption: <3 W
- Flash Frequency: 1 Hz
- Operating Temperature: -20°C to +60°C
- Protection Class: IP54
- Dimensions: 76 x 125 mm (including antenna)
- Weight: 93 g
- Model Number: F6000
- Article Number: ST201015
Delivery Contents:
- 1x Schartec Mini Signal Light
- Rod Antenna
- Mounting Material
