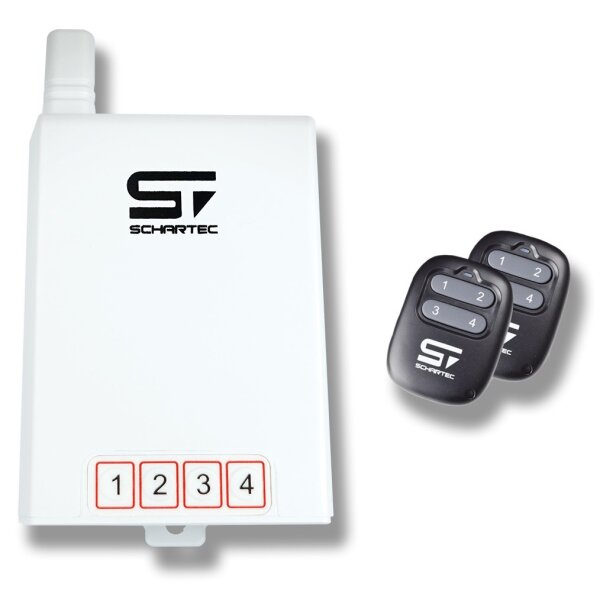

4-Channel Universal Remote Receiver Set with 2 Handsets
Our remote receiver is universal and suitable for any electric gate operator. Whether it's a garage door or a driveway gate, with the Schartec 4-Channel Remote Receiver Kit, you can retrofit any type of gate operators. The Schartec remote receiver set is particularly useful for controlling multiple gate operators with a single remote control. The 4 channels allow you to connect up to four different gate operators from various manufacturers to the remote receiver. The included 4-channel handsets enable you to control up to four connected gate operators with one remote. No more multiple, different remotes in your car.
Remote Receiver 433 MHz for Easy Retrofitting of Garage or Driveway Gates
The universal remote receiver kit is ideal for equipping your old operator with new handsets or replacing a faulty remote receiver. The radio system is also very secure, thanks to the rolling code encryption. With a frequency of 433.92 MHz, the signal transmits stably and ensures good range for the transmitters.
Easy Installation - Ready to Use in No Time
The power supply for the remote receiver is provided via 12-24 V AC/DC power supply, which most gate operators already provide. Simply connect the desired channel with 2 wires to the button input of the gate operator, and the installation is complete. Programming the handsets is done via a programming button in just a few seconds. Additional handsets can be found in our shop.
Function:
- 4-Channel (4 Relay Outputs)
- Impulse mode or latch contact available per channel
- Integrated button for each channel = operate channel directly at the remote receiver without a handset
- Very easy operation (only two steps)
- Rolling code encryption (very secure)
- High range (up to 50 m / depending on local conditions)
- Resistant to radio interference
- Handset with loop for attachment to keyring
Exclusively compatible with Schartec handsets:
- T6107 (Item number: ST201001)
- T3501 (Item number: ST201010)
IMPORTANT: If you have connected two or more operators to the remote receiver, it is not possible to use one handset solely for channel 1 and another solely for channel 2. Each programmed handset is always able to control all four channels (Button 1 = Channel 1 / Button 2 = Channel 2 / Button 3 = Channel 3 / Button 4 = Channel 4). Therefore, this remote receiver is not suitable if you want to rent out your second garage, as the tenant would also have access to your garage.
