Marantec L-Rail 2-Part

SKU: 177212

L-rail for Marantec drives

£ 159.90

incl. 20% VAT , plus

Currently out of stock
Would you like to be notified when the item is back in stock? Sign up in the ‘Notify me when available’ tab within the product description.

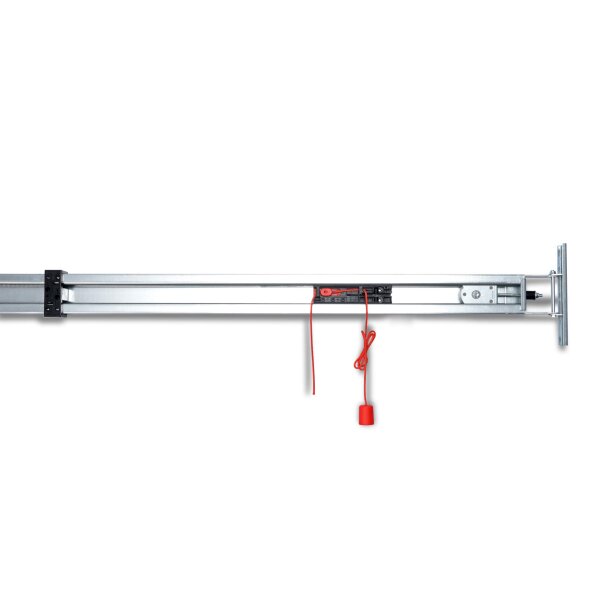

L-rail for Marantec Garage Door Operators

Compatible with the Marantec Comfort 260, 270, 280, 360, 370, 380, and 260 Accu. This rail from Marantec has a profile thickness of 0.8 mm and a robust toothed belt. The rails are two-part and are assembled together. Suitable for up-and-over doors up to 3500 mm in height and sectional doors up to 3250 mm in height (N-hardware) and 3125 mm in height (L-/Z-hardware).

Technical Data:

Overall Length: 4090 mm
Movement Stroke: 3485 mm
Packaging Length: 2100 mm
Weight: 7.2 kg
Two-part

Function / Application:

For power transmission from the drive system to the door
SafeLock system: cut-outs in the drive rail for upgrading with Special 108 (except special length)
The rail length depends on the door height and the door manufacturer
Suitable for the drive systems Marantec Comfort 260, 270, 280, 360, 370, 380, and 260 Accu.
