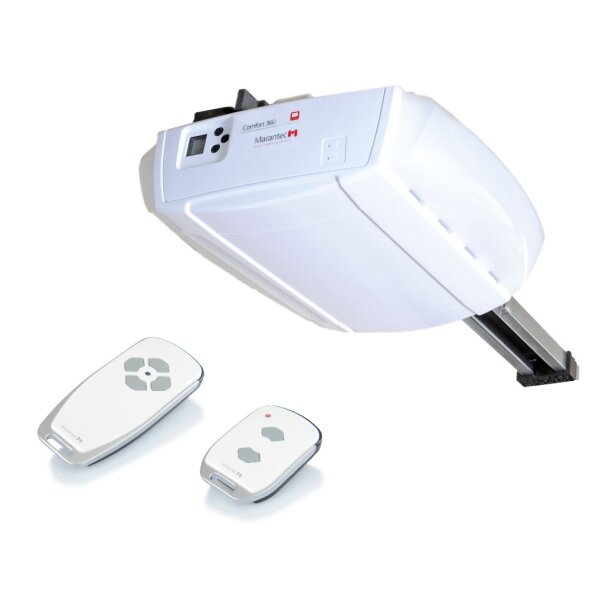

Marantec Comfort 360 bi-linked Garage Door Opener with K-Rail

Marantec Comfort 360 bi-linked Garage Door Opener with K-Rail

SKU: 183504-177208

Marantec Comfort 360 bi-linked garage door opener with K-rail

£ 270.90

incl. 20% VAT , plus

Low stock level
Delivery time: ca. 2 - 3 Workdays (GB - int. shipments may differ)

Description
Reviews
PDF (3)

Marantec Comfort 360 bi-linked Garage Door Opener Without Rail

Replacement head unit delivered without drive rail.

The Comfort 360 garage door opener is a top-of-the-line model from Marantec. With a powerful pulling and pushing force of 650 N, it is suitable for slightly larger doors while remaining energy-efficient thanks to Marantec’s patented blueline technology. Features such as soft start, anti-lift device, obstruction detection, and high-speed opening are just a few of the technical highlights of this electric garage door opener.

The energy-saving LED lighting provides sufficient illumination inside your garage. The remotes use Marantec’s bi-directional bi-linked wireless technology, which not only impresses with an elegant design but also ensures absolutely secure bi-directional radio encryption.

5-year manufacturer warranty (see warranty terms)

Features:

Energy-saving blueline technology
High-speed function
Electronic limit switch
Soft start / soft stop / smooth run
Electronic anti-lift protection
Obstruction protection
Travel time limit
Emergency release via pull cord (inside)
Drive head rotatable by +/- 90°
Marantec EOS programming with LC display
Reversible drive direction
Back jump (relieves pressure on closing edge)
Automatic closing (only in combination with a safety beam)
Connections for push button, safety beam, stop circuit
Programmable opening time and pre-warning time
Programmable light duration, switchable via remote
Separate programmable shutoff for OPEN and CLOSE
Separate programmable intermediate positions for OPEN and CLOSE
Programmable door speed for OPEN and CLOSE
Programmable soft-run position for OPEN and CLOSE
Programmable soft-run speed for OPEN and CLOSE
Programmable input and output pulses
Maintenance counter (programmable interval) and cycle counter
Error signalling with error memory
Multi-level reset function (control, safety, radio, etc.)
Conventional connections for button, beam and stop circuit
MS-Bus connection for expansion boards (integrated boards)
MS-BUS connection for hand programmer and expansion modules
Battery backup connection (back-up 100 compatible)
Output 24 V DC, max. 50 mA

Key Product Advantages:

Flexible installation: The drive head can rotate 90° left or right, making it suitable for nearly any installation setup. The integrated lighting can also be directed for custom illumination.
Patented force limitation: The motor reacts sensitively to obstacles, stops immediately, reverses, and reliably protects people and objects.
Double burglary protection: The electronically monitored anti-lift mechanism prevents unauthorised opening. The gear’s self-locking mechanism provides additional mechanical protection.
Emergency release: In the event of a power failure, the door can be released from the inside. If your garage has no second entrance, an external emergency release is required.
Safety beams: Contactless monitoring of the garage door area for enhanced safety for your whole family.
Marantec door openers are fully compliant with all legal standards and offer innovative and patented safety features. All systems are manufactured in accordance with DIN ISO 9001 and DIN ISO 14001.

Which rail fits your door?

	K-Rail	M-Rail	L-Rail
Up-and-over doors max. height	2500 mm	2750 mm	3500 mm
Sectional doors with N-track (spring front top) max. height	2250 mm	2500 mm	3250 mm
Sectional doors with L-track (spring rear top) or Z-track (spring side) max. height	2125 mm	2375 mm	3125 mm
Total length; travel stroke	3080 mm; 2475 mm	3330 mm; 2725 mm	4090 mm; 3485 mm

IMPORTANT! The new bi-linked openers are only compatible with Marantec bi-linked remote controls!

There are no reviews in the current language.

Advantages

Economical thanks to blueline technology
Integrated LED lighting
5-year manufacturer warranty

Technical Data

Comfort 360
Rated Voltage	230 V
Rated Frequency	50/60 Hz
Current Consumption	1.1 A
Power Consumption in Operation	approx. 0.25 kW
Power Consumption in Stand-by	approx. 0.6 W
Duty Cycle	KB 2 min
Control Voltage	24 V DC
Protection Class Motor-Unit	IP 20
Max. Pull and Push Force	650 N
Max. Running Speed	220 mm/s
Opening Time, door-specific	approx. 9.5 sec.
Door Cycles	max. 20 per day
Weight (Motor Unit)	4345 g
Temperature Range	-20°C to +60°C
Max. Door Width (m)
a) Single-skin Sectional Doors	5 m
b) Double-skin Sectional Doors	3 m
c) Swing Doors	3.5 m
d) Tilt and Canopy Doors up to 2.25 m Door Height	3.5 m
Max. Door Weight (kg)	110 kg

Delivery Scope

Motor unit Comfort 360 with integrated control Digital 921 module receiver 868 MHz bi-linked
Digital 564 remote control, 4-channel 868 MHz bi-linked
Digital 572 micro remote control, 2-channel 868 MHz bi-linked
Marantec SZ 11-SL micro-profiled drive rail with 0.8 mm profile thickness and timing belt, 2-part
Universal installation kit for swing and sectional doors
Mounting accessories and fastening materials
Power cable with Euro plug, 1,500 mm
Installation instructions
