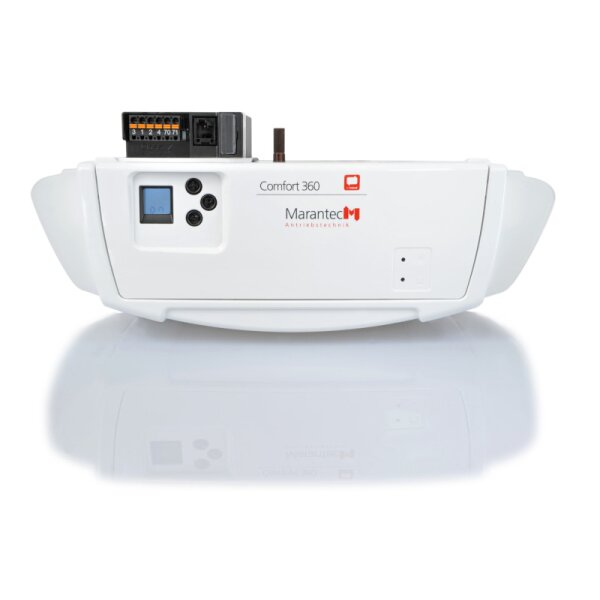

Marantec Comfort 360 bi-linked Garage Door Opener Without Rail
Replacement head unit delivered without drive rail.
The Comfort 360 garage door opener is a top-of-the-line model from Marantec. With a powerful pulling and pushing force of 650 N, it is suitable for slightly larger doors while remaining energy-efficient thanks to Marantec’s patented blueline technology. Features such as soft start, anti-lift device, obstruction detection, and high-speed opening are just a few of the technical highlights of this electric garage door opener.
The energy-saving LED lighting provides sufficient illumination inside your garage. The remotes use Marantec’s bi-directional bi-linked wireless technology, which not only impresses with an elegant design but also ensures absolutely secure bi-directional radio encryption.
5-year manufacturer warranty (see warranty terms)
Features:
- Energy-saving blueline technology
- High-speed function
- Electronic limit switch
- Soft start / soft stop / smooth run
- Electronic anti-lift protection
- Obstruction protection
- Travel time limit
- Emergency release via pull cord (inside)
- Drive head rotatable by +/- 90°
- Marantec EOS programming with LC display
- Reversible drive direction
- Back jump (relieves pressure on closing edge)
- Automatic closing (only in combination with a safety beam)
- Connections for push button, safety beam, stop circuit
- Programmable opening time and pre-warning time
- Programmable light duration, switchable via remote
- Separate programmable shutoff for OPEN and CLOSE
- Separate programmable intermediate positions for OPEN and CLOSE
- Programmable door speed for OPEN and CLOSE
- Programmable soft-run position for OPEN and CLOSE
- Programmable soft-run speed for OPEN and CLOSE
- Programmable input and output pulses
- Maintenance counter (programmable interval) and cycle counter
- Error signalling with error memory
- Multi-level reset function (control, safety, radio, etc.)
- Conventional connections for button, beam and stop circuit
- MS-Bus connection for expansion boards (integrated boards)
- MS-BUS connection for hand programmer and expansion modules
- Battery backup connection (back-up 100 compatible)
- Output 24 V DC, max. 50 mA
Key Product Advantages:
- Flexible installation: The drive head can rotate 90° left or right, making it suitable for nearly any installation setup. The integrated lighting can also be directed for custom illumination.
- Patented force limitation: The motor reacts sensitively to obstacles, stops immediately, reverses, and reliably protects people and objects.
- Double burglary protection: The electronically monitored anti-lift mechanism prevents unauthorised opening. The gear’s self-locking mechanism provides additional mechanical protection.
Emergency release: In the event of a power failure, the door can be released from the inside. If your garage has no second entrance, an external emergency release is required.
- Safety beams: Contactless monitoring of the garage door area for enhanced safety for your whole family.
- Marantec door openers are fully compliant with all legal standards and offer innovative and patented safety features. All systems are manufactured in accordance with DIN ISO 9001 and DIN ISO 14001.
Which rail fits your door?
IMPORTANT! The new bi-linked openers are only compatible with Marantec bi-linked remote controls!
