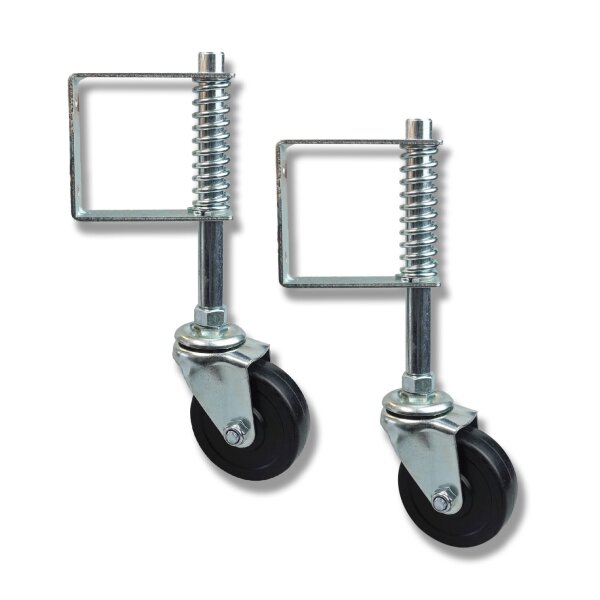

2 x Schartec Spring-Loaded Gate Wheel up to 100 kg

2 x Schartec Spring-Loaded Gate Wheel up to 100 kg

SKU: ST171031-2x

Set of 2 Spring loaded Gate Roller for Garden Gates & Swing Gates up to 100 kg

£ 16.95

incl. 20% VAT , plus

Goods ordered. 25 expected on 03.10.2026.
Would you like to be notified when the item is back in stock? Sign up in the ‘Notify me when available’ tab within the product description.

2-Set SCHARTEC Spring Loaded Gate Wheel

The spring gate roller Schartec ZCL3A reliably supports garden gates, field gates and swing gates, preventing the gate leaf from sagging. Thanks to the integrated spring, shocks and vibrations are cushioned when opening and closing, while the 360° swivel function allows easy follow-on movement even on uneven ground. At the same time, the hinges are relieved and the load is distributed evenly.

Made from galvanised steel with a robust TPR roller, the gate support wheel is suitable for gates up to 100 kg. For optimum performance, the spring should be slightly preloaded during installation.

Benefits:

Universally applicable for garden gates, yard gates, swing gates, double-leaf gates etc.
Easy operation: The gate roller with 360° rotating wheel ensures particularly smooth and effortless manoeuvring.
Robust & durable: The combination of a reinforced galvanised steel bracket and a high-quality TPR wheel allows a load capacity of up to 100 kg. The integrated ball bearing guarantees smooth movement in all directions.
Greater stability: The integrated spring effectively absorbs shocks and vibrations. With a spring travel of approx. 40 mm, it provides optimum support for the gate and ensures even load distribution. Note: Not suitable for very uneven terrain or deep ground irregularities.
Important installation note: For optimum performance, the spring should be preloaded before installation. This prevents the gate from rebounding over uneven ground and ensures stable guidance.
In the familiar SCHARTEC quality: corrosion-resistant thanks to high-quality galvanised steel

Technical data:

Model: Schartec ZCL3A
Material: galvanised steel
Material thickness: 3 mm
Weight: 816 g
Roller:
- Diameter: 75 mm
- Width: 24 mm
- Material: TPR
Load capacity: max. 100 kg
Dimensions approx. (L x W x H): 96 x 50 x 240 mm
Diameter of drilled holes: 8 mm
Spring travel: approx. 40 mm

Scope of delivery:

2 x Schartec swivel gate roller with spring
